Exit demo 200-120 Cisco Certified Network Associate PDF format · free preview

Cisco 200-120 - Questions & Answers

Free preview · every answer includes a full explanation

Product page: https://prepkeys.com/200-120.html

Question 1
Multiple choice

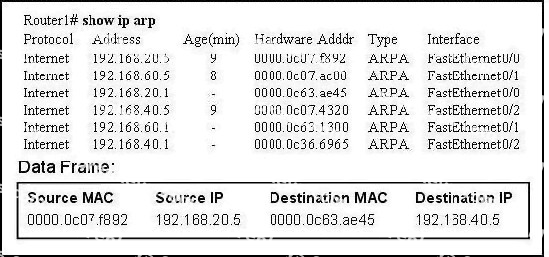

Refer to the exhibit:

What will Router1 do when it receives the data frame shown? (Choose three.)

A.

Router1 will strip off the source MAC address and replace it with the MAC address 0000.0c36.6965.

B.

Router1 will strip off the source IP address and replace it with the IP address 192.168.40.1.

C.

Router1 will strip off the destination MAC address and replace it with the MAC address 0000.0c07.4320.

D.

Router1 will strip off the destination IP address and replace it with the IP address of 192.168.40.1.

E.

Router1 will forward the data packet out interface FastEthernet0/1.

F.

Router1 will forward the data packet out interface FastEthernet0/2.

Question 2
Multiple choice

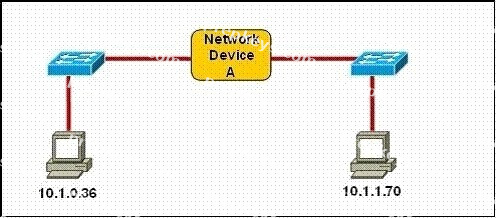

Refer to the exhibit.

Which three statements correctly describe Network Device A? (Choose three.)

A.

With a network wide mask of 255.255.255.128, each interface does not require an IP address.

B.

With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP subnet.

C.

With a network wide mask of 255.255.255.0, must be a Layer 2 device for the PCs to communicate with each other.

D.

With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.

E.

With a network wide mask of 255.255.254.0, each interface does not require an IP address.

Question 3
Single choice

Which layer in the OSI reference model is responsible for determining the availability of the receiving program and checking to see if enough resources exist for that communication?

A.

transport

B.

network

C.

presentation

D.

session

E.

application

Question 4
Multiple choice

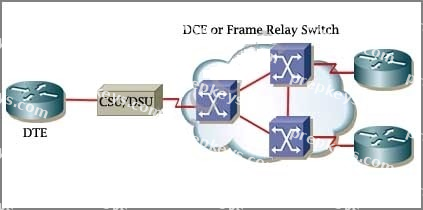

Which of the following describes the roles of devices in a WAN? (Choose three.)

A.

A CSU/DSU terminates a digital local loop.

B.

A modem terminates a digital local loop.

C.

A CSU/DSU terminates an analog local loop.

D.

A modem terminates an analog local loop.

E.

A router is commonly considered a DTE device.

F.

A router is commonly considered a DCE device.

Question 5
Single choice

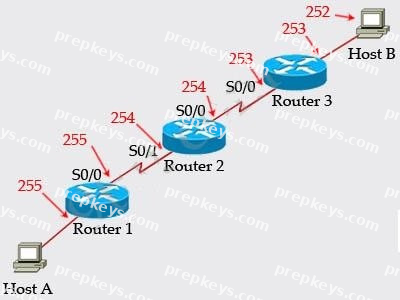

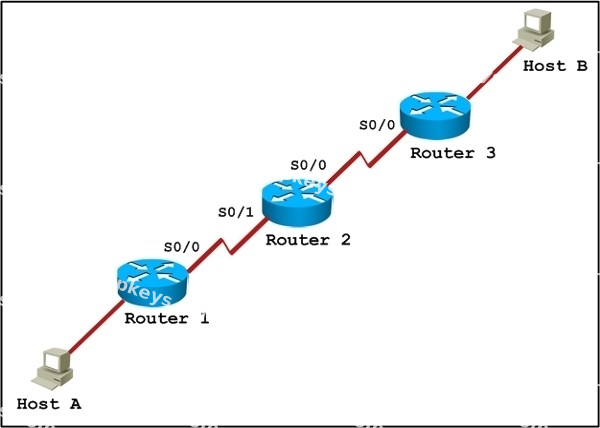

Refer to the exhibit.

Host A pings interface S0/0 on router 3.

What is the TTL value for that ping?

A.

252

B.

253

C.

254

D.

255

Question 6
Single choice

A network administrator is verifying the configuration of a newly installed host by establishing an FTP connection to a remote server.

What is the highest layer of the protocol stack that the network administrator is using for this operation?

A.

application

B.

presentation

C.

session

D.

transport

E.

internet

F.

data link

Question 7
Single choice

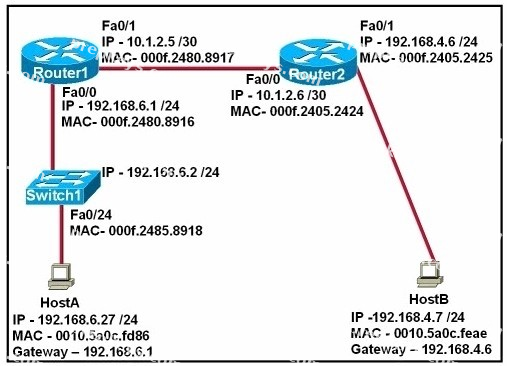

Refer to the exhibit.

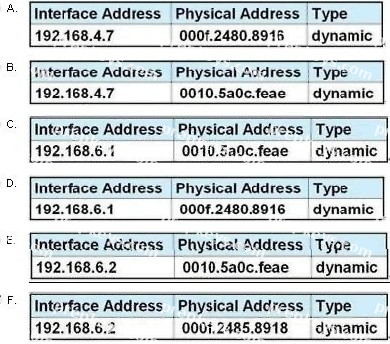

After HostA pings HostB, which entry will be in the ARP cache of HostA to support this transmission?

A.

Exhibit A

B.

Exhibit B

C.

Exhibit C

D.

Exhibit D

E.

Exhibit E

F.

Exhibit F

Question 8
Single choice

A network interface port has collision detection and carrier sensing enabled on a shared twisted pair network.
From this statement, what is known about the network interface port?

A.

This is a 10 Mb/s switch port.

B.

This is a 100 Mb/s switch port.

C.

This is an Ethernet port operating at half duplex.

D.

This is an Ethernet port operating at full duplex.

E.

This is a port on a network interface card in a PC.

Question 9
Single choice

A receiving host computes the checksum on a frame and determines that the frame is damaged. The frame is then discarded.
At which OSI layer did this happen?

A.

session

B.

transport

C.

network

D.

data link

E.

physical

Question 10
Multiple choice

Which of the following correctly describe steps in the OSI data encapsulation process? (Choose two.)

A.

The transport layer divides a data stream into segments and may add reliability and flow control information.

B.

The data link layer adds physical source and destination addresses and an FCS to the segment.

C.

Packets are created when the network layer encapsulates a frame with source and destination host addresses and protocol-related control information.

D.

Packets are created when the network layer adds Layer 3 addresses and control information to a segment.

E.

The presentation layer translates bits into voltages for transmission across the physical link.

Showing 10 of 364 questions · Unlock the full set
