Cisco 200-125 - Questions & Answers

When a frame is received, the switch looks at the destination hardware address and finds the interface if it is in its MAC address table. If the address is unknown, the frame is broadcast on all interfaces except the one it was received on.

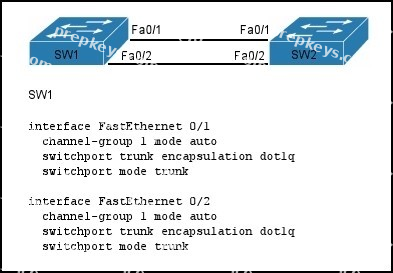

If the etherchannel was configured with mode "auto", it was using PagP, so, we need to configure the other switch with "desirable" mode.

PagP modes: auto | Desirable
LACP modes: active | pasive

Spanning Tree Protocol convergence (Layer 2 convergence) happens when bridges and switches have transitioned to either the forwarding or blocking state. When layer 2 is converged, root bridge is elected and all port roles (Root, Designated and Non-Designated) in all switches are selected.

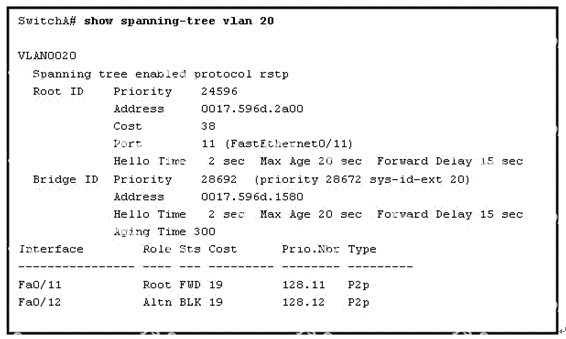

Only non-root bridge can have root port. Fa0/11 is the root port so we can confirm this switch is not the
root bridge ->.
From the output we learn this switch is running Rapid STP, not PVST ->. 0017.596d.1580 is the MAC address of this switch, not of the root bridge. The MAC address of the root bridge is 0017.596d.2a00 ->. All
of the interface roles of the root bridge are designated. SwitchA has one Root port and 1 Alternative port so it is not the root bridge.

RSTP and STP operate on switches and are based on the exchange of Bridge Protocol Data Units (BPDUs) between switches. One of the most important fields in BPDUs is the Bridge Priority in which the MAC address is used to elect the Root Bridge -> RSTP operates at Layer 2 ?Data Link layer >;.

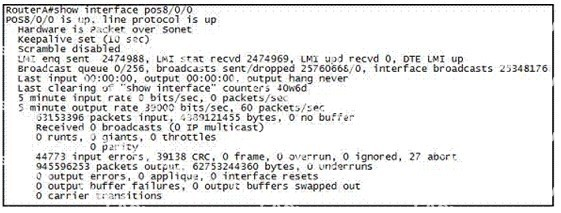

This question is to examine the show int command. According to the information provided in the exhibit, we can know that the data link protocol used in this network is the Frame Relay protocol.
"LMI enq sent..."

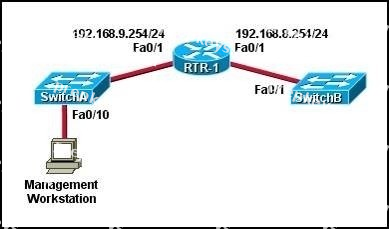

To remote access to SwitchB, it must have a management IP address on a VLAN on that switch.
Traditionally, we often use VLAN 1 as the management VLAN (but in fact it is not secure). In the exhibit, we can recognize that the Management Workstation is in a different subnet from the SwitchB. For intersubnetwork communication to occur, you must configure at least one default gateway. This default gateway is used to forward traffic originating from the switch only, not to forward traffic sent by devices connected to the switch.

Each VLAN creates its own broadcast domain. Since this is a full duplex switch, each port is a separate collision domain.

ICMP pings are used to verify connectivity between two IP hosts. Traceroute is used to verify the router hop path traffic will take but in this case since the hosts are in the same LAN there will be no router hops involved.
