Cisco 210-065 - Questions & Answers

Free preview · every answer includes a full explanation

Product page: https://prepkeys.com/210-065.html

Question 1
Multiple choice

A large company wants to procure video conference devices that allow multipoint conferences from C-
Series and immersive endpoints that are registered to a Cisco VCS and Cisco Unified Communications Manager.

Which two components meet the requirements of this company? (Choose two.)

A.

Cisco TelePresence Multipoint Switch registered to Cisco VCS

B.

Cisco C-Series endpoint with a multisite option key registered to Cisco VCS

C.

Cisco TelePresence Server registered to Cisco VCS

D.

Cisco C-Series endpoint with a multisite option key registered to Cisco Unified Communications Manager

E.

Cisco TelePresence Multipoint Switch trunked to Cisco Unified Communications Manager

Question 2
Multiple choice

A video conference user that is connected via a Cisco TelePresence Codec C40 to a conference that is hosted on a Cisco TelePresence MCU 5300 would like to switch the local layout view.

Which two options describe how to switch the local layout view without affecting the view of remote users? (Choose two.)

A.

Use the Administrator settings from the local touch control.

B.

Use the Participant settings from the MCU 5300 web interface.

C.

Use the Call settings from the remote control.

D.

Use the Call Control settings from the codec web interface.

E.

Use the Conference settings from the codec web interface.

Question 3
Single choice

Management would like to set up a permanent recurring Cisco TelePresence meeting where the team would dial into to a preconfigured number.

Which meeting type should be used?

A.

scheduled conference

B.

ad hoc conference

C.

rendezvous conference

D.

multiway conference

Question 4
Multiple choice

An engineer deployed two Cisco TelePresence MCU 5320 Servers in a stacked deployment. Each server has 20 HD Port licenses installed. During a 20-party 720p 30-fps conference, eight additional parties attempt to join the conference.

What are the two characteristics of this scenario? (Choose two.)

A.

The Cisco 5320 MCU in a stacked deployment is capable of supporting 720p 30-fps without traditional cascading.

B.

When the 21st party joins, the call is declined because all ports are already in use on the first Cisco TelePresence 5320 MCU.

C.

The 21st party is cascaded into the conference, and the 22nd and additional parties are declined due to the overutilization of resources.

D.

the additional conference attendees are able to join the conference in the same manner and layout configuration that they could join a single bridge that was able to handle all 28 parties.

E.

The Cisco TelePresence MCU 5320 is capable of supporting a maximum of twenty 720p 30-fps calls when deployed in a stackable configuration, because each MCU is capable of managing only ten 720p
30-fps attendees.

F.

The conference is auto-balanced and resources are re-optimized via the MCU API. Parties 1 through 19 are hosted on the first MCU, and parties 20 through 28 are cascaded to the second MCU using an additional port on each MCU for the cascading.

G.

The additional eight parties are cascaded into the conference on the second 5320 MCU, and an additional port license is used on each MCU to facilitate the bridging between the MCUs.

Question 5
Single choice

A user is dialed into an auto-attendant on a Cisco 4500 Series MCU. The user does not have FECC capabilities and needs to navigate to the third conference in the list to join.

What is the proper way for the user to join the conference?

A.

by using DTMF signaling by dialing 8, 8, 6, #

B.

by using SIP TECC signaling to navigate to the proper conference by dialing 8, 8, 6, #

C.

using DTMF signaling by dialing ##, 8, 8, 6, #

D.

by using the Cisco 4500 Series MCU built-in capability to send DTMF via Web Administration and dialing 8, 8, 8, #

Question 6
Single choice

An engineer must ensure that bridging of several separate conferences to create a single large conference occurs and increases MCU call capacity.

Which feature allows this requirements?

A.

multiway

B.

Ad Hoc

C.

multisite

D.

multipoint

E.

cascading

Question 7
Multiple choice

When scheduling a multipoint conference, which three devices are required for the conference to be scheduled and completed successfully? (Choose three.)

A.

Cisco Unified Communications Manager

B.

multipoint control unit

C.

video conferencing endpoints

D.

Cisco Unity Connection

E.

Cisco Unified IM and Presence

Question 8
Single choice

Which statement is correct regarding the difference between Multisite and Multiway conferencing?

A.

Multisite requires configuration on the endpoint, whereas Multiway requires the Multiway options key to be installed.

B.

Multisite requires the presence of a multipoint control unit, whereas Multiway relies on the endpoint conferencing capability.

C.

Multisite is used to conference in multiple sites, whereas Multiway is intrasite multipoint conferencing.

D.

Multisite requires the Multisite options key to be installed and configured at the endpoint, whereas Multiway requires a Cisco TelePresence Video Communications Server and a centralized multipoint control unit.

Question 9
Multiple choice

Which two of these support an ad-hoc conference call? (Choose two.)

A.

Cisco TelePresence Multiway with Cisco TelePresence Multipoint Control Unit and Cisco TelePresence Video Communications Server

B.

using the Cisco TelePresence Management Suite Scheduler to schedule a conference call to start in 5 minutes

C.

using the Booking tab in the Cisco TelePresence Management Suite to configure a new conference

D.

using the tab Administrative Tools > Configuration > Conference Settings in the Cisco TelePresence
Management Suite

E.

pressing the conference button on a Cisco Unified IP Phone 8941 to conference in a third call

Question 10
Single choice

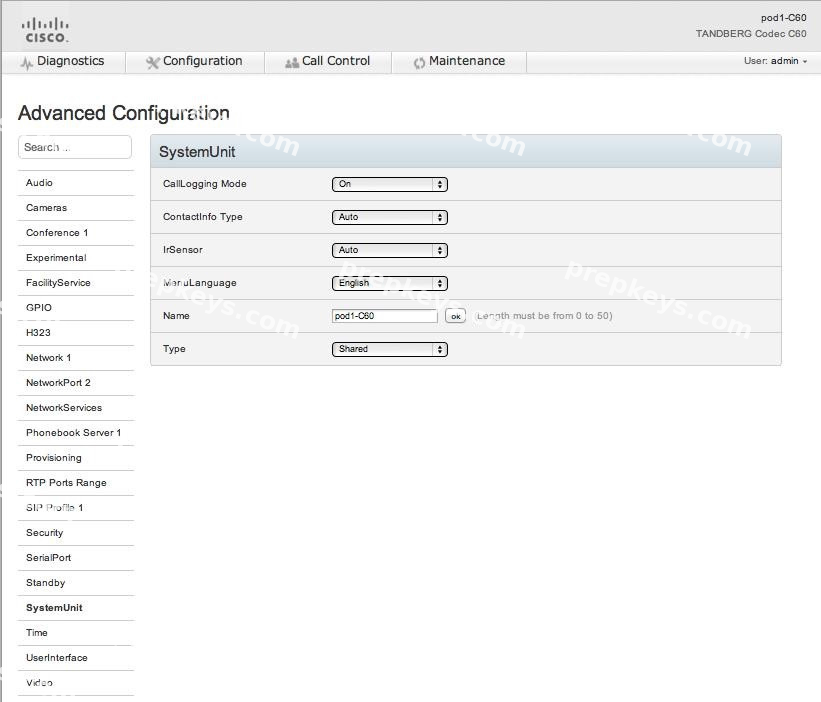

Refer to the exhibit.

Which configuration element can be used to specify the Multiway address that can be used by the endpoint to initiate Multiway calls?

A.

Conference 1

B.

NetworkServices

C.

Provisioning

D.

SIP Profile 1

E.

Video

Showing 10 of 457 questions · Unlock the full set
