Cisco 300-440 - Questions & Answers

A fully meshed topology with SD-WAN technology, using dynamic routing and BGP as the routing protocol, meets the requirements of the company because it provides the following benefits

It allows direct and secure connectivity between any two branch offices, without the need for a central hub or intermediary devices. This reduces the latency and improves the performance of the critical business applications. It leverages SD-WAN technology to optimize the traffic flow and application quality of service (QoS) across the WAN. SD-WAN can dynamically select the best path for each application based on the network conditions and policies. SD-WAN can also provide redundancy, security, and visibility for the WAN. It uses dynamic routing and BGP as the routing protocol to exchange routing information and establish connectivity between the branch offices. BGP is a scalable and flexible protocol that can support multiple address families, such as IPv4 and IPv6, and multiple routing policies, such as local preference and route filtering. BGP can also enable seamless integration with the cloud service providers (CSPs) and
internet service providers (ISPs).

References:
1: Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5) (Cisco U.login required)
2: Cisco SD-WAN Design Guide

References:
Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep Designing and Implementing Cloud Connectivity (ENCC) v1.0
Cisco Multiprotocol Label Switching
Exploring Cisco Cloud OnRamp for Colocation ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS : [Deploying Cisco IOS VTI-Based Point-to-
Point IPsec VPNs]

Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources.

References:
AWS Security Groups
Security Groups for Your VPC Security Groups for Your Amazon EC2 Instances Security Groups for Your Amazon EKS Cluster

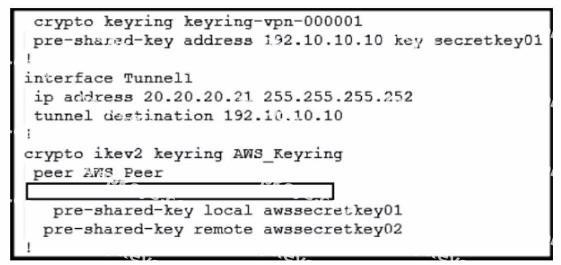

In the given scenario, an engineer is configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and AWS. The correct command to complete the tunnel configuration is "tunnel source 20.20.20.21". This command specifies the source IP address for the tunnel, which is essential for establishing a secure connection between two endpoints over the internet or another network.

References:
Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
[Security for VPNs with IPsec Configuration Guide, Cisco IOS XE Release 3S - Config

A centralized internet gateway is a network design that routes all internet-bound traffic from the on-premises infrastructure through a single point of egress, typically located at the data center or a regional hub 1. This approach allows the enterprise to apply consistent security policies and access controls for SaaS applications, as well as optimize the bandwidth utilization and performance of the WAN links.
A centralized internet gateway can use various technologies to provide connectivity to SaaS applications, such as proxy servers, firewalls, web filters, and WAN optimizers. However, a cloud-based proxy server (option A) is not a part of the centralized internet gateway, but rather a separate service that can be used to route traffic from the on-premises infrastructure to the SaaS provider data center 4. VPN connections (option C) and dedicated, private connections (option D) are also not related to the centralized internet gateway, but rather alternative ways of providing secure and reliable access to SaaS applications from the on-premises infrastructure 5. Therefore, the correct answer is option B, which describes the basic function of a centralized internet gateway.

Azure ExpressRoute is a service that enables a dedicated and secure connection between an on-premises infrastructure and Azure data centers through a colocation provider. A colocation provider is a third-party data center that offers network connectivity services to multiple customers. Azure ExpressRoute allows customers to bypass the public internet and connect directly to Azure services, such as virtual machines, storage, databases, and more. This provides benefits such as lower latency, higher bandwidth, more reliability, and enhanced security. Azure ExpressRoute also supports hybrid scenarios, such as connecting to Office 365, Dynamics 365, and other SaaS applications hosted on Azure. Azure ExpressRoute requires a physical connection between the customer's network and the colocation provider's network, as well as a logical connection between the customer's network and the Azure virtual network. The logical connection is established using a Border Gateway Protocol (BGP) session, which exchanges routing information between the two networks. Azure ExpressRoute supports two models: standard and premium. The standard model offers connectivity to all Azure regionswithin the same geopolitical region, while the premium model offers connectivity to all Azure regions globally, as well as additional features such as increased route limits, global reach, and Microsoft peering.

References:
Designing and Implementing Cloud Connectivity (ENCC) v1.0, Learning Plan: Designing and
Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep, ENCC | Designing and Implementing
Cloud Connectivity | Netec

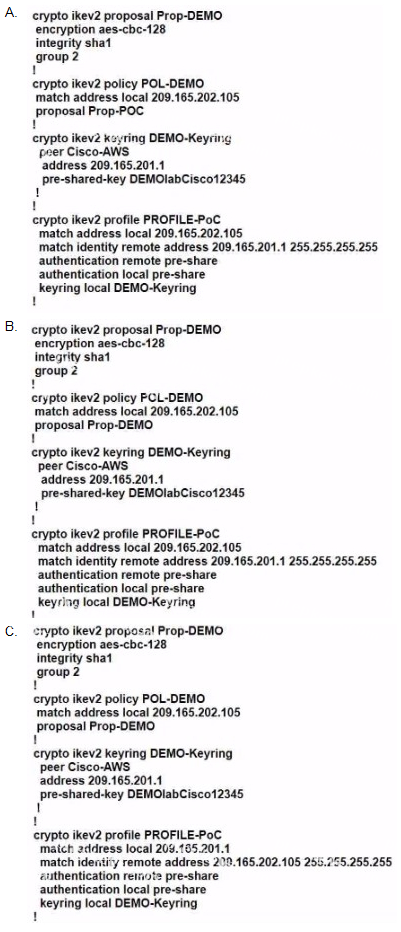

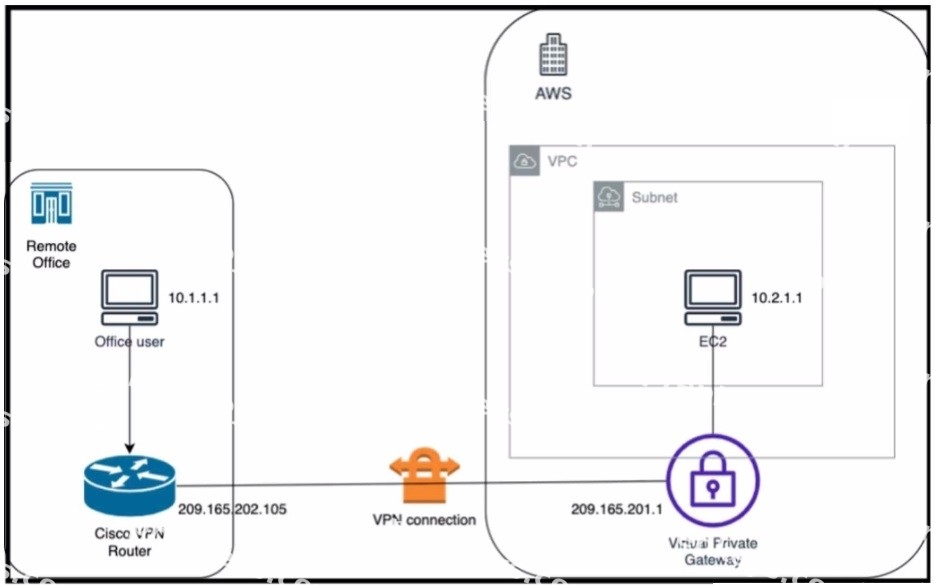

Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters.
Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address.
Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key.
Option C also matches the configuration example provided by AWS and Cisco for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway.

References:
1: AWS VPN Configuration Guide for Cisco IOS-XE
2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

According to the FedRAMP Authorization Boundary Guidance document, the method used to create authorization boundary diagrams (ABDs) is to identify all tools as either external orinternal to the boundary.
The ABD is a visual representation of the components that make up the authorization boundary, which includes all technologies, external and internal services, and leveraged systems and accounts for all federal information, data, and metadata that a Cloud Service Offering (CSO) is responsible for. The ABD should illustrate a CSP's scope of control over the system and show components or services that are leveraged from external services or controlled by the customer. The other options are incorrect because they do not capture the full scope and details of the authorization boundary as required by FedRAMP.

References:
FedRAMP Authorization Boundary Guidance document
