Cisco 300-810 - Questions & Answers

Free preview · every answer includes a full explanation

Product page: https://prepkeys.com/300-810.html

Question 1
Single choice

An organization has two Cisco IM and Presence clusters: one in the Americas and one in EMEAR. Both clusters connect via an intercluster peer. Each Cisco IM and Presence cluster has four nodes logically divided into two subclusters with high availability enabled with its local peers.

When the Cisco IM and Presence publisher node in the Americas fails, to where are the users failed over?

A.

Cisco IM and Presence publisher in EMEAR. in the different logical group

B.

Cisco IM and Presence subscriber in the Americas, in the different logical group

C.

Cisco IM and Presence subscriber in EMEAR. in the same logical group with IM and Presence publisher

D.

Cisco IM and Presence subscriber in the Americas, in the same logical group with IM and Presence publisher

Question 2
Single choice

An engineer needs to configure calendar integration between Microsoft Exchange and a Cisco IM and Presence server.

The engineer created the resource mailboxes and now needs to add impersonation.

Which command accomplishes this task using the Exchange Management Shell from Microsoft Exchange?

A.

Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Group (Get-User -
Identity User | select-Group) .identity -ExtendedRights Receive-As

B.

Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Group (Get-User -
Identity User | select-object) .identity -ExtendedRights Receive-As

C.

Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Policy (Get-User -
Identity User | select-object) .identity -ExtendedRights Receive-As

D.

Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -User (Get-User -
Identity User | select-object) .identity -ExtendedRights Receive-As

Question 3
Single choice

An engineer is configuring XMPP federation on the Cisco IM and Presence server and has changed the security settings to TLS Optional on one node in the cluster.

What is the next step in the configuration process?

A.

Start the Cisco DB Replicator

B.

Start the Cisco Replication Watcher.

C.

Restart the Cisco XCP Router.

D.

Restart the Cisco Presence Engine

Question 4
Single choice

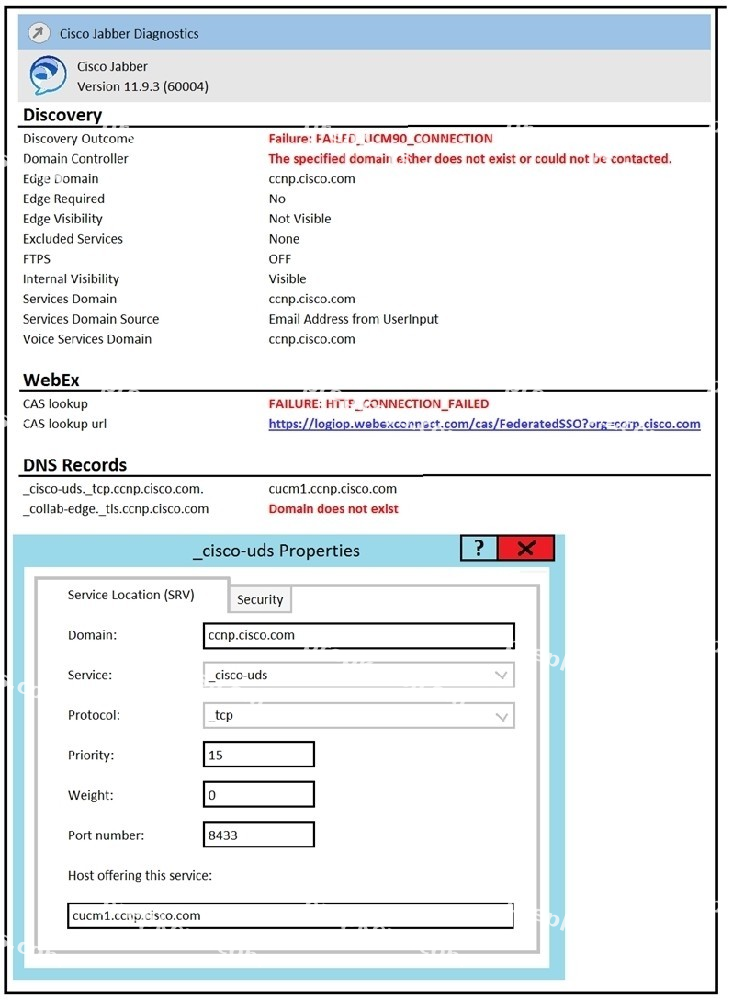

Refer to the exhibit.

Users connected to the internal network report a "Cannot communicate with the server" error while trying to log in to Cisco Jabber using auto service discovery. The Jabber diagnostics and the SRV record configuration are as shown in the exhibit. The host cucm1.ccnp.cisco.com is correctly resolved by the user desktops with the Cisco Unified Communications Manager IP address.

Why is the user not able to log in?

A.

SRV protocol is not set up correctly. It should be_tls instead of_tcp.

B.

Marking weight as 0 on the SRV record makes it inactive, so Jabber cannot discover the Cisco Unified
CM.

C.

The port specified on the SRV record is wrong.

D.

The domain ccnp.cisco.com does not exist on the DNS server.

Question 5
Single choice

Which entity is a standard component used for authentication by SAML 2.0?

A.

identity provider

B.

session broker

C.

Internet service provider

D.

client access server

Question 6
Single choice

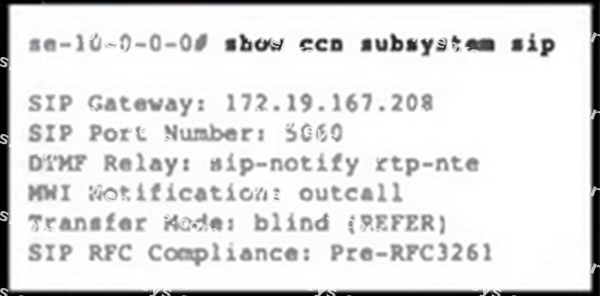

Refer to the exhibit.

An administrator is configuring a Cisco Unity Express call handier. One of the options will transfer calls off-system to Cisco UCME. The administrator wants the transfer to finish while the transfer target Is ringing.

Which transfer-mode command completes the configuration?

A.

attended

B.

blind refer

C.

semi-attended

D.

Wind bye-also

Question 7
Single choice

A network engineer needs to configure high availability on the Cisco IM and presence cluster. After the configuration was completed and tested, the engineer noticed on Cisco UCM that the IM and Presence publisher is in "Failed Over" state.

Which set of steps must be taken to resolve this issue?

A.

Cisco UCM Group Configuration > High Availability > click Fallback

B.

BLF Presence Group Configuration > High Availability > select the publisher server > click Restart
Services

C.

BLF Presence Group Configuration > High Availability > click Fallback

D.

Presence Redundancy Group Configuration > High Availability > click Fallback

Question 8
Multiple choice

Which two SSO features are true? (Choose two.)

A.

allows Jabber to use LDAP directory services for contact imports

B.

allows LDAP user import on Cisco Unified Communications Manager

C.

improves productivity by reducing time spent re-entering credentials for the same identity

D.

transfers the authentication from the system that hosts the applications to a third-party system

E.

reduces costs by decreasing the number of help calls that are made for voicemail PIN resets

Question 9
Single choice

Which Cisco IM and Presence service must be activated and running for IM Presence to successfully integrate with Cisco Unified Communications Manager?

A.

Cisco DHCP Monitor Service

B.

Cisco AXL Web Service

C.

Self-Provisioning IVR

D.

Cisco XCP Authentication Service

Question 10
Single choice

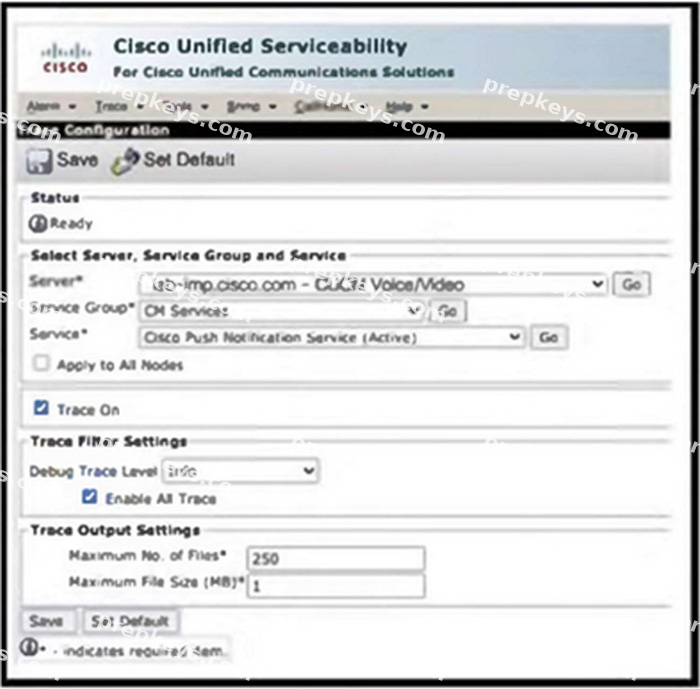

Refer to the exhibit.

An administrator troubleshoots push notifications, and Cisco TAC requests the trace files from the cluster.
From which location should the files be collected?

A.

/var/log/active/imp/trace/cmas/log4j

B.

/var/log/active/cm/trace/ccmpns/log4j/

C.

/var/log/active/cm/trace/cmas/log4J/

D.

/var/log/active/cm/trace/ccm/log4j/

Showing 10 of 220 questions · Unlock the full set
