Avaya 71301X - Questions & Answers

After installing a new Avaya Session Border Controller for Enterprise (ASBC6) component / device using the EMS GUI, you click on the Install link on the EMS Device Management page. After briefly displaying the Provisioned status, the final status that the ASBCE component / device should display is Running. The EMS Device Management page is a web interface that allows you to view and manage the ASBCE components / devices, such as EMS (Element Management System), SBC (Session Border Controller), or HCA (High Capacity Appliance). The EMS Device Management page displays information such as device name, management IP, version, status, reboot, and shutdown for each component / device. The status indicates the operational state of the component / device, which can be one of these values: Provisioned, Commissioned, Registered, or Running. The Running status means that the component / device is fully operational and ready to handle traffic. Therefore, after installing a new ASBCE component / device using the EMS GUI, you should wait until it displays a Running status on the EMS Device Management page.

To connect to the Application Enablement Services (AES) web interface, you need to use the correct URL and the default login ID. The AES web interface is a web-based application that allows you to configure and manage the AES server and its features. You can access the AES web interface using any web browser that supports HTTPS. The URL for connecting to the AES web interface is
https://<AES
Management IP Address>:8443, where <AES Management IP Address> is the IP address of the AES server that you want to connect to. The port number 8443 is the default port for HTTPS communication with the AES server. After entering the URL in the web browser, you will see a login screen where you need to enter the login ID and password for accessing the AES web interface. The default login ID for the AES web interface is craft, which is a system administrator account that has full access to all features and functions of the AES server. The default password for the craft account is craft. You can change the password or create other user accounts with different access levels using the Security Database feature of the AES web interface.

The Server ID is a numeric value that identifies each Communication Manager server in the network. The Server ID is used for licensing, administration, and synchronization purposes. Every CM server in the network needs to be assigned a unique Server ID, including servers in a duplex pair. A duplex pair is a configuration where two CM servers are connected by a dedicated link and act as a single logical entity, providing high availability and redundancy for call processing. The Server ID of each CM server in a duplex pair must be an even/odd pair (N, N+1), where N is an even number. For example, if one server in a duplex pair has Server ID 2, theother server must have Server ID 3. The Server ID can be configured during the installation or post-installation of Communication Manager, using the set server-id command

The Avaya Session Border Controller for Enterprise (ASBCE) requires licenses to support different types of services, such as SIP Trunking or Remote Worker. The ASBCE licenses are based on the number of concurrent sessions that are handled by the ASBCE server. There are two types of licenses: standard services licenses and advanced services licenses. A standard services license is required for each SIP Trunking session, which is a session between the ASBCE server and a SIP service provider. An advanced services license is required for each Remote Worker session, which is a session between the ASBCE server and a remote endpoint, such as an IP phone or a softphone. Therefore, if the customer plans to have 50 SIP Trunks and100 Remote Workers supported by the ASBCE, they will need 50 standard services licenses and 100 advanced services licenses.

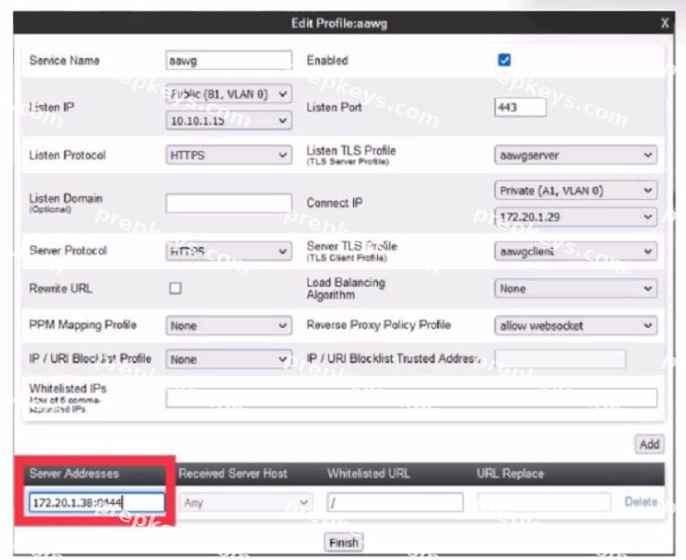

When configuring a Reverse Proxy for the Avaya Aura Web Gateway (AAWG) in the Avaya Session Border Controller for Enterprise (ASBCE), the Server Address field is used to specify the IP address or FQDN and port of the AAWG server. The port used in this field shouldmatch the listen port on the AAWG server that is used for all WebRTC call signalling. The default listen port on the AAWG server is 8444, which is also used by default in the Server Address field of the ASBCE Reverse Proxy configuration. The Reverse Proxy allows external clients to access the AAWG server securely and transparently through the ASBCE

If the Avaya Session Border Controller for Enterprise (ASBCE) does not trust the Certificate Authority (CA) that signed the WebLM server identity certificate, you can use the sbceconfigurator.py fix-weblm-cert command issued from the EMS CLI to fix the trust issue. The WebLM server is a web-based licensing application that manages licenses for various Avaya products, such as Communication Manager, Session Manager, Presence Services, or Breeze Platform. The WebLM server uses an identity certificate to authenticate itself to other entities that communicate with it using HTTPS or REST APIs. The identity certificate is signed by a CA, which is an entity that issues and verifies certificates. The ASBCE server needs to trust the CA that signed the WebLM server identity certificate in order to communicate with it securely and obtain licenses from it. If the ASBCE server does not trust the CA, you can use the sbceconfigurator.py fix-weblm-cert command to install the CA certificate on the ASBCE server and establish trust with it. The sbceconfigurator.py tool is a Python script that runs on the EMS component of the ASBCE server and performs various configuration tasks. The EMS component is responsible for managing and monitoring the ASBCE server. You can access the EMS CLI using SSH or Telnet and run the sbceconfigurator.py tool from there.

The statement that is true about the Application Enablement Services (AES) certificate management is that AES is shipped with a default certificate which is valid for one year, and a customer-provided server identity certificate must be installed before the default certificate expires. A server identity certificate is a file that contains information about the identity and public key of a server, such as AES. A server identity certificate is used to authenticate the server to other entities that communicate with it using HTTPS or SIP over TLS. A server identity certificate is signed by a Certificate Authority (CA), which is an entity that issues and verifies certificates. AES uses certificates for various purposes, such as securing web access, enabling HTTPS-based APIs, encrypting SIP signaling, and supporting mutual authentication with endpoints or servers. AES comes with a default self-signed certificate that can be used for testing or demonstration purposes. The default certificate is valid for one year from the date of installation. After one year, the default certificate expires and needs to be replaced with a valid customer-provided certificate from a trusted CA. To install a customer-provided certificate on AES, you need to use tools such as OpenSSL or Keytool to generate a Certificate Signing Request (CSR), submit it to a CA, obtain a signed certificate from the CA, and upload it to AES using the web interface or CLI.

Before obtaining a server identity certificate from a Certificate Authority (CA) for the installation on the Avaya Session Border Controller for Enterprise (ASBCE), you need to generate a Certificate Signing Request (CSR). A CSR is a file that contains information about the identity and public key of the ASBCE server, as well as a digital signature that proves the ownership of the public key. A CSR is used to request a server identity certificate from a CA, which is an entity that issues and verifies certificates. The CA will check the information in the CSR and issue a server identity certificate that contains the same information and public key, as well as the CA's signature and validity period. The server identity certificate is used to authenticate the ASBCE server to other entities that communicate with it using HTTPS or SIP over TLS. To generate a CSR for the ASBCE server, you can use tools such as OpenSSL or Keytool, or use the ASBCE web interface or CLI.
