Question 1
Single choice

If a VRRP Master router is rebooted, what is the default behavior once it comes back online?

A.

An election occurs to determine which router will have the Master role

B.

Original VRRP Master will take back control of the Master role

C.

Original VRRP Backup will retain the Master role

D.

VRRP Master role is determined by the router with the lowest MAC address

Question 2
Single choice

If a group of routers are running VRRP with a virtual router ID of 155, which MAC address will be used to respond to the ARP requests for the virtual IP?

A.

0000-5E00-0155

B.

0000-5E00-019B

C.

0001-5500-005E

D.

0001-9B00-005E

Question 3
Single choice

An administrator just finished configuring a Dell EMC N-Series switch. After rebooting the switch, the administrator notices that all the configuration settings just entered are gone.

Which command did the administrator fail to enter?

A.

Copy running-config startup-config

B.

Copy running-config backup-config

C.

Copy startup-config backup-config

D.

Copy startup-config running-config

Question 4
Single choice

When configuring a PBR route-map, what are the configurable "SET" options?

A.

set ip source, set ip next-hop, and set ip default next-hop

B.

set ip next-hop, set ip source, and set ip precedence

C.

set ip next-hop, set ip default next-hop, and set ip precedence

D.

set ip source, set ip default next-hop and set ip precedence

Question 5
Single choice

A user's host with an IP address of 172.16.1.22/24 is attempting to FTP a file from the server with IP
address 10.1.1.99; however, they are unable to connect.

Which access-list is preventing this traffic?

A.

# ip access-list ACL1
# deny ip any host 10.1.1.99

B.

# ip access-list ACL2
# permit ip 172.16.1.0 0.0.0.255 any

C.

# ip access-list ACL3
# deny ip any 172.16.2.0 0.0.0.255

D.

# ip access-list ACL4
# permit ip host 172.16.1.22 host 10.1.1.99

Question 6
Single choice

When setting up VoIP, you decide that you want to use LLDP. LLDP is enabled by default and LLDP Transmit Management Information and Notification modes are enabled.

What additional steps need to be performed?

A.

Enable ISDP and enable LLDP-MED confignotification

B.

Disable ISDP and enable LLDP-MED confignotification

C.

Enable ISDP and disable LLDP-MED confignotification

D.

Disable ISDP and disable LLDP-MED confignotification

Question 7
Single choice

After setting up the VoIP configuration, a network administrator issues the following commands with the results shown:

console# show voice vlan
Administrative Mode...........................Enable

console# show voice vlan it gi 1/0/2
Interface........................................Gi1/0/2
Voice VLAN Interface Mode...............Enabled
Voice VLAN ID...............................10
Voice VLAN COS Overwrite...............False
Voice VLAN DSCP Value...................46
Voice VLAN Port Status.....................Enabled
Voice VLAN Authentication................
Disabled Based on this information, what is the Layer 3 QoS value?

A.

5

B.

10

C.

46

D.

Gi1/0/2

Question 8
Single choice

What is the IP protocol number, in decimal, assigned by IANA for VRRP?

A.

25

B.

112

C.

443

D.

1443

Question 9
Single choice

What is the recommended maximum number of routers, per area, when using OSPF?

A.

50

B.

100

C.

200

D.

255

Question 10
Single choice

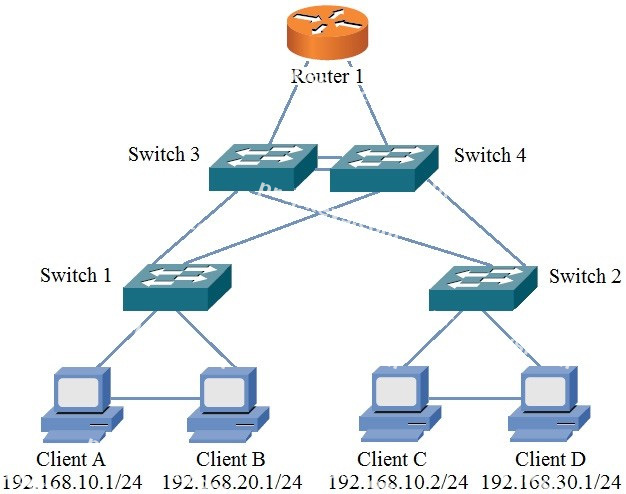

Refer to the Exhibit.

If Client B sends a packet to Client A, what is the highest level of the network hierarchy that the packet will transverse?

A.

Distribution

B.

Network

C.

Access

D.

Core
