Question 1
Single choice

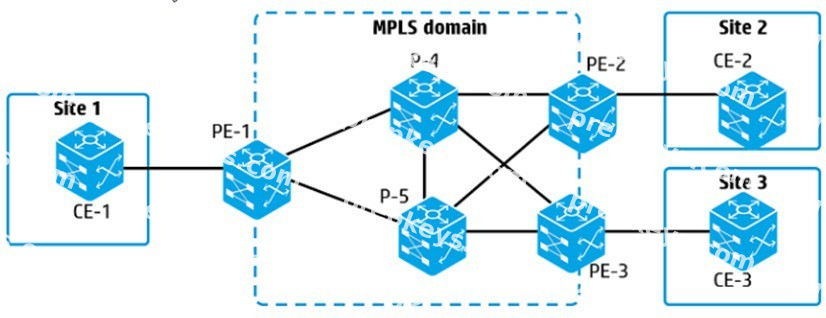

Refer to the exhibit

An MPLS VPLS solution (non-hierarchical) will connect the sites shown in the exhibit

Which pseudo wire (PW) connections must the administrator configure?

A.

A full mesh of PWs between every PE router that connects to a site and every P router between them

B.

A hub-and-spoke set of PWs between one P router and all PE routers that connect to a site

C.

A full mesh of PWs between every PE router that connects to a site

D.

A hub-and-spoke set of PWs between one PE router and other PE routers that connect to a site

Question 2
Single choice

An administrator is configuring an HP switch to run SPBM.

Which Spanning Tree Protocol (STP) configuration is required?

A.

Disable STP.

B.

Ensure that the switch with the lowest IS-IS router ID has the lowest bridge priority.

C.

Set the spanning tree mode to ECT.

D.

Map all B-VLANs to MSTP instance 4092

Question 3
Single choice

An administrator creates two VPN instances on an HP Comware switch, in addition to the public instance.
The switch implements routing protocols and MPLS.

Which statement is correct about the routing tables and Label Forwarding Information Bases (LFIBs) maintained by the switch?

A.

The switch uses a single routing table and maintains a separate LFIB for each VPN instance

B.

The switch maintains a separate routing table and LFIB for each VPN instance, but the public tables automatically include entries from the other instances.

C.

The switch maintains a separate routing table and LFIB for each VPN instance.

D.

The switch maintains a separate routing table for each VPN instance and uses a single LFIB

Question 4
Single choice

An HP Comware switch uses the MDC feature and has two MDCs defined. Administrators want MDC 1 and MDC 2 to be able to exchange traffic.

How should the administrators complete the configuration?

A.

Create a virtual port with the same name on MDC 1 and MDC 2.

B.

Create a virtual port on MDC 0 and tag that port for the MDC 1 and MDC 2 management VLANs

C.

Connect a physical port that belongs to MDC 1 to a physical port that belongs to MDC 2

D.

Configure MDC 0 to permit data exchange and add a backplane mapping between MDC 1 and MDC 2.

Question 5
Single choice

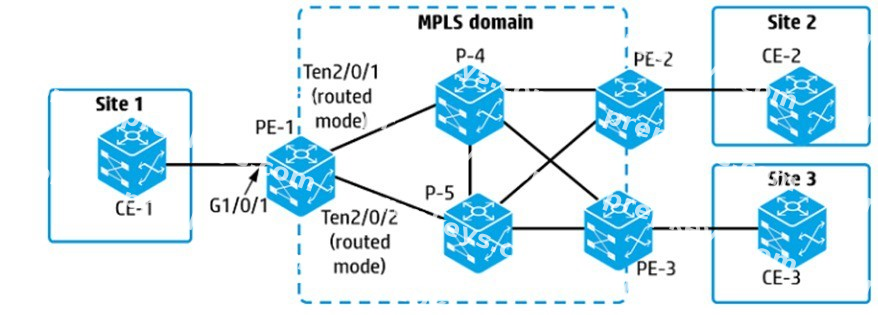

Refer to the exhibit

An administrator is setting up an MPLS Layer 2 VPN between customer Sites 1 and 2 and is defining the pseudo wire (PW) ID for this purpose.

How should the PW IDs and router values be configured?

A.

Set the PW ID to a different value on PE-1 and PE-2 The value on each router must match the label advertised by the peer for its loopback address.

B.

Set the PW ID to a different value on PE-1 and PE-2 Also use a different value from other PWs on these routers.

C.

Set the PW ID to the same value on PE-1 and PE-2. Use a different value from other PWs on these routers.

D.

Set the PW ID to the same value on PE-1 and PE-2. The value on each router must match the S-VLAN ID for the associated service instance.

Question 6
Single choice

How does a non-hierarchical VPLS Martini solution prevent looping for broadcasts and multicasts?

A.

PEs use a hub and spoke topology, relying on the hub to distribute broadcasts and multicasts.

B.

PEs use split horizon operations, never forwarding a packet received on a pseudo wire (PW) over another PW.

C.

PEs implement Shortest Path Bridging (SPB) VLAN Mode (SPBV).

D.

PEs implement a version of Spanning Tree Protocol (STP). preferably Multiple STP (MSTP).

Question 7
Single choice

A large data center needs to extend its Layer 2 connectivity and isolate tenants who might use the same VLAN IDs

Which technology accomplishes this goal?

A.

SPBM

B.

Data Center Bridging (DCB)

C.

Multi-VPN-Instance CE (MCE)

D.

TRILL

Question 8
Single choice

To provide redundancy, a company has multiple data centers that use server virtualization.

What is a networking requirement for this scenario?

A.

less bandwidth at the server access layer and more bandwidth at the distribution layer than in a non-virtualized network

B.

physical network segmentation and isolation implemented at Layers 1 through 7

C.

localized storage volumes that are isolated within each data center

D.

extension of Layer 2 connectivity across the data centers

Question 9
Single choice

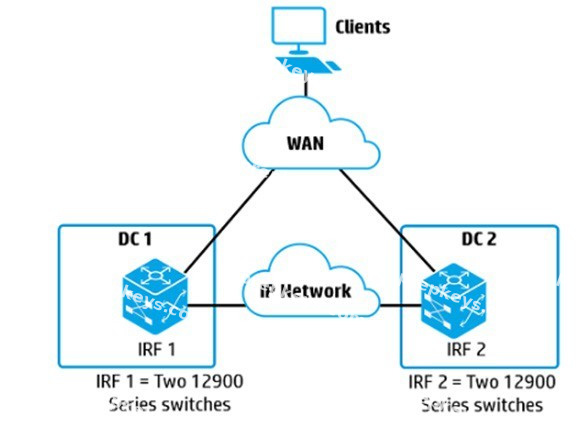

Refer to the exhibit

The exhibit displays a company with two data centers that connect by using EVl. The company needs a redundant solution for routing traffic between the subnets.

What is the best way to accomplish this goal?

A.

Run Virtual Router Redundancy Protocol (VRRP) on the data center subnets

B.

Place the EVl tunnel interface on each IRF virtual device in a different VPN instance, and then set up routing on each device by using the same IP addresses.

C.

Use TRILL on the EVl network.

D.

Combine IRF 1 and IRF 2 into the same IRF virtual device, and set up routing on that device

Question 10
Single choice

In addition to the Admin MDC, an HP Comware switch supports two MDCs: MDC 2 and MDC
3. The administrator wants to allow tenants for both MDCs to log in to CLI for their own MDC without first accessing the Admin MDC

How can the administrator accomplish this goal?

A.

Assign a console port to each MDC Tenants can then connect their own terminal equipment to their assigned port.

B.

Define a VLAN as the MDC Management VLAN in the Admin MDC. On each MDC. create this VLAN.
Assign a port to it. Set up an IP address on it and set up Telnet or SSH access through it.

C.

Create subinterfaces for the AUX user-interface in the Admin MDC. Assign one of the subinterfaces to each of the MDCs. and set up Telnet or SSH access through that interface

D.

Define a physical port as the Management-Ethernet interface in the Admin MDC On each MDC.
Configure a different IP address for this interface, and set up Telnet or SSH access through it.
