Switch-2 waits a period called the link-up delay before it enables Switched Virtual Interfaces (SVIs) on its VSX LAGs is a true statement about what happens when Switch-2 experiences a power failure while Switch-1 remains up and then recovers. Switch- 1 and Switch-2 are ArubaOS-CX switches, which are part of a Virtual Switching Extension (VSX) fabric. VSX is a feature that provides active-active forwarding and redundancy for ArubaOS-CX switches. The link-up delay timer defines how long a VSX node waits before advertising link state changes to its peer node. This allows the node to synchronize its MAC forwarding, ARP, and routing tables with its peer node before sending or receiving traffic on the newly activated link 1.

Ring1, instance 1: control VLAN: 1000 protected VLANs: 51-135 Ring 1,Instance2: control VLAN: 1001 protected VLANs: 136-220 Ring 2, Instance l: control VLAN: 1002 protected VLANs: l8l -200 Ring 2,
Instance2: control VLAN: l003 protected VLANs:201 -220 is a valid design for the control and protected VLANs on the VSX fabric l switches for an Ethernet Ring Protection Switching (ERPS) solution. The control VLANs are unique for each ring instance and do not overlap with any protected VLANs. The protected VLANs are also unique for each ring instance and do not overlap with any control VLANs2.

A data center network is a network that connects servers, storage devices, and other devices within a data center. A campus network is a network that connects buildings and users within a campus area, such as a university or an enterprise. Data center network traffic flows are typically east-west, which means they are between servers or devices within the data center. This is because data center applications often require high-speed communication and data exchange between servers for processing, analysis, or backup.
Campus network traffic flows are typically north-south, which means they are between users or devices and external networks, such as the Internet or a wide area network (WAN). This is because campus users often access online services or resources that are hosted outside the campus network 12. Therefore, this is a valid difference between a typical data center network's requirements and a typical campus network's requirements.

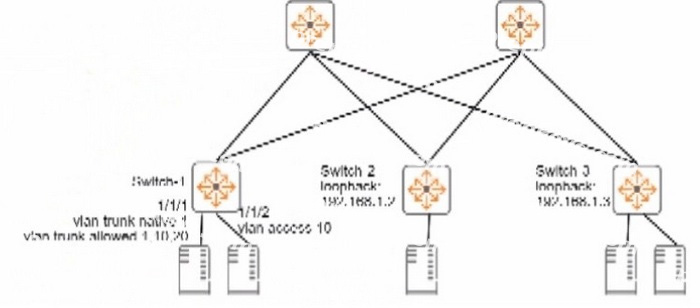

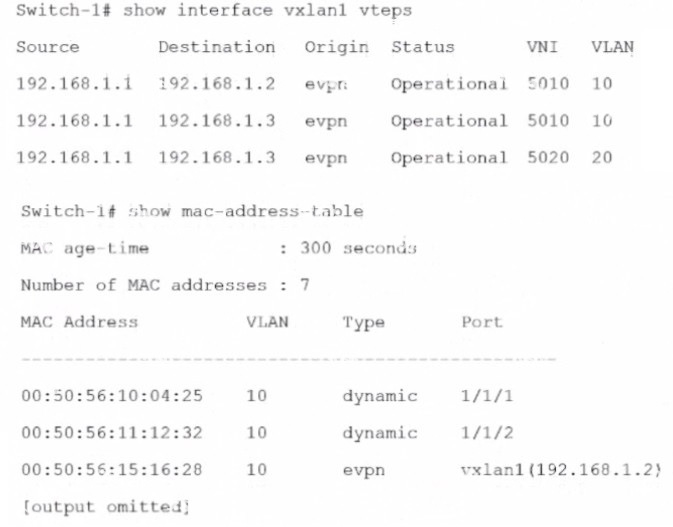

A frame with destination MAC address, 00:50:56:15:16:28, arrives with a VLAN 10 tag on 1/1/1 on Switch- 1. Switch-1 encapsulates the frame with VXLAN and an IP header destined to 192.168.1.2 is a correct explanation of how the switch handles the traffic. Switch-1, Switch-2, and Switch-3 are ArubaOS-CX switches that use VXLAN and EVPN to provide Layer 2 extension over Layer 3 networks. VXLAN is a feature that uses UDP encapsulation to tunnel Layer 2 frames over Layer 3 networks using VNIs. EVPN is a feature that uses BGP to advertise MAC and IP addresses of hosts connected to VTEPs. Switch-1 receives a frame with destination MAC address, 00:50:56:15:16:28, which belongs to VM-2 on Switch-3.
Switch-1 learns from EVPN that VM-2 is reachable through VTEP 192.168.1.2, which is Switch-3's loopback interface. Switch-1 encapsulates the frame with VXLAN and an IP header destined to 192.168.1.2 and sends it over the underlay network 1.

IPv6 protocol cannot be encapsulated in the underlay network's IPv4 packets. EVPN is a protocol that provides layer 2 and layer 3 services over an IP network1 . It uses VXLAN tunnels to encapsulate Ethernet frames in UDP packets and transport them across the underlay network 1. The underlay network can use either IPv4 or IPv6 protocol, but it must match the protocol used by the VXLAN tunnels 1. The statement is false because it implies that IPv6 protocol can be encapsulated in IPv4 packets, which is not possible.

Network Analytics Engine (NAE) is a built-in analytics framework for network assurance and remediation on ArubaOS-CX switches. NAE allows monitoring, troubleshooting, and proactive network management using scripts and agents. Virtual Switching Extension (VSX) is a high-availability technology that allows two ArubaOS-CX switches to operate as a single logical device. You can run NAE with VSX, but only the primary VSX member will actually run agents during normal operation. The secondary VSX member will only run agents if the primary member fails or is rebooted 1. Therefore, this correctly describes NAE limitations on ArubaOS-CX switches.

VXLAN is a tunneling protocol that encapsulates layer 2 traffic over an IP network using VXLAN Network Identifiers (VNIs) to identify different layer 2 segments. VXLAN Tunnel Endpoints (VTEPs) are devices that perform the encapsulation and decapsulation of VXLAN packets. VTEPs can use different methods to handle broadcast, unknown unicast, and multicast (BUM) traffic within a VNI. One of these methods is headend replication, which means that the VTEP that receives a BUM packet replicates it and sends it as a unicast to each remote VTEP in the same VNI1. This method does not require multicast routing in the underlay network, but it can increase the load on the ingress VTEP. Therefore, this correctly describes how the VTEPs handle VXLAN traffic forwarding without EVPN.

The ArubaOS-CX software is based on the ArubaOS-Switch software and adds data center features is not a correct description of the ArubaOS-CX architecture. The ArubaOS-CX software is a new operating system that is designed for data center and campus networks. It is not based on the ArubaOS-Switch software, which is used for legacy campus switches. The ArubaOS-CX software provides advanced features such as VSX, EVPN, NAE, REST APIs, etc 1.

Different virtual MAC must be used for IPv4 and IPv6 Active Gateway is not a true statement about EVPN and IPv6 for configuring an EVPN solution for a dual-stack IPv4 and IPv6 protocol in the overlay networks.
Active Gateway is a feature that provides first-hop redundancy for hosts connected to VTEPs using anycast gateway addresses. Active Gateway can use the same virtual MAC address for both IPv4 and IPv6 protocols on the same VNI2.

Virtual Switching Extension (VSX) is a high-availability technology that allows two ArubaOS-CX switches to operate as a single logical device. VSX Inter-Switch Link (ISL) is a link between the two VSX switches that is used for both data plane and control plane traffic. It is not recommended to reserve the ISL for control plane traffic only, as this would limit the benefits of VSX and create suboptimal traffic forwarding 1.
Therefore, this is not a valid guideline for establishing a VSX ISL between two ArubaOS-CX switches.
