HP HPE6-A84 - Questions & Answers

ClearPass Policy Manager (CPPM) requires network device entries for the devices that communicate with it using RADIUS or TACACS+ protocols. In this scenario, the gateways are the devices that act as RADIUS clients and send authentication requests to CPPM for the WLAN users. Therefore, CPPM needs to have network device entries for the gateways' actual IP addresses and the shared secrets that match the ones configured on the gateways.

Additionally, CPPM also requires network device entries for the gateways' dynamic authorization VRRP addresses, which are used for sending CoA messages to the gateways. CoA messages are used to change the attributes or status of a user session on the gateways without requiring re-authentication. For example, CPPM can use CoA to apply policies, roles, or bandwidth limits based on various conditions. To enable VRRP IP addresses for dynamic authorization, you need to set up gateway clusters manually and assign a VRRP VLAN and a VRRP IP address to each cluster. This way, CPPM can use the VRRP IP address as the NAS IP address for RADIUS communications and CoA messages. The VRRP IP address will remain the same even if the active gateway in the cluster changes due to a failover event, ensuring seamless operations.

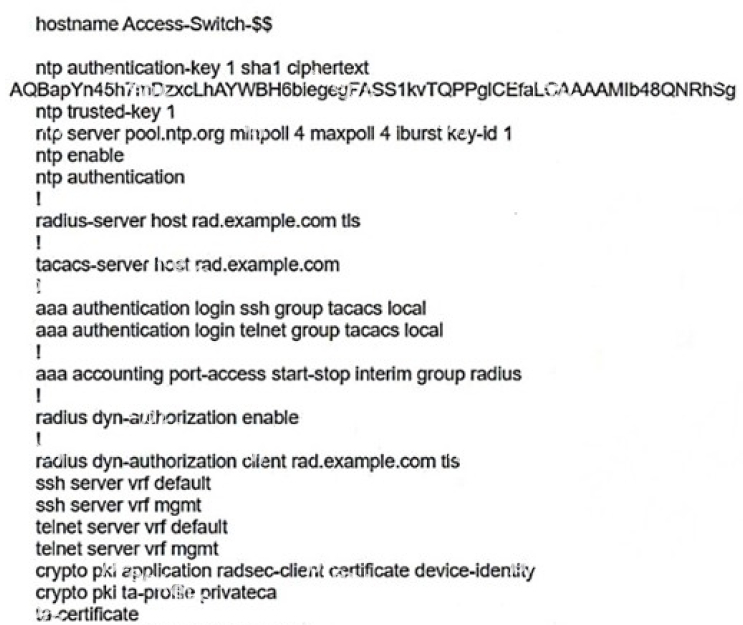

According to the AOS-CX Switches Multiple Vulnerabilities1, one of the vulnerabilities (CVE-2021-41001) affects the Telnet service on AOS-CX switches. This vulnerability allows an unauthenticated remote attacker to cause a denial-of-service condition on the switch by sending specially crafted Telnet packets.
The impact of this vulnerability is high, as it could result in a loss of management access and network disruption. Therefore, one immediate remediation that you should recommend is to disable Telnet on the switch. This way, the switch can prevent any malicious Telnet traffic from reaching it and avoid the exploitation of this vulnerability.

A profile conflict occurs when ClearPass Policy Manager (CPPM) detects a change in the device category or OS family of an endpoint that has been previously profiled. This could indicate that someone has spoofed the MAC address of a legitimate device and is trying to gain unauthorized access to the network.
For example, if an endpoint that was previously profiled as a Printer suddenly shows a new profile of Computer, this could be a sign of an attack. You can find more information about profile conflicts and how to resolve them in the ClearPass Policy Manager User Guide1. The other options are not necessarily signs of unauthorized access, as they could have other explanations. For example, multiple DHCP options under the fingerprints could indicate that the device has connected to different networks or subnets, an Unknown status could indicate that the device has not been authenticated yet, and a lack of hostname or a random hostname could indicate that the device has not been configured properly or has been reset to factory settings.

According to the Aruba Cloud Authentication and Policy Overview1, Device Insight tags are stored in the Endpoint Repository and can be used as conditions within CPPM role mapping or enforcement policy rules. The rule condition type should be Endpoint, and the attribute should be Device Insight Tags. No extra authorization source is required for services that use policies with these rules. Therefore, option D is the correct answer.
Option A is incorrect because creating an HTTP authentication source to the Central API is not necessary to use Device Insight tags as conditions. Device Insight tags are already synchronized between Central and CPPM, and can be accessed from the Endpoint Repository.
Option B is incorrect because using the Application type for the rule conditions is not applicable to Device Insight tags. The Application type is used to match attributes from the Application Authentication source, which is used to integrate with third-party applications such as Microsoft Intune or Google G Suite.
Option C is incorrect because using the Endpoints Repository type for the rule conditions is not valid for Device Insight tags. The Endpoints Repository type is used to match attributes from the Endpoints Repository source, which is different from the Endpoint type. The Endpoints Repository source contains information about endpoints that are manually added or imported into CPPM, while the Endpoint type contains information about endpoints that are dynamically discovered and profiled by CPPM or Device Insight. Adding Endpoints Repository as a secondary authentication source for services that use policies with these rules is also unnecessary and redundant.

To configure CPPM to collect information from Intune on demand during the authentication process, you need to use the Intune extension for ClearPass. This extension allows ClearPass to query Intune for device compliance and configuration information using the Intune API. To use this extension, you need to register an app in Azure AD and grant it the required permissions to access Intune1

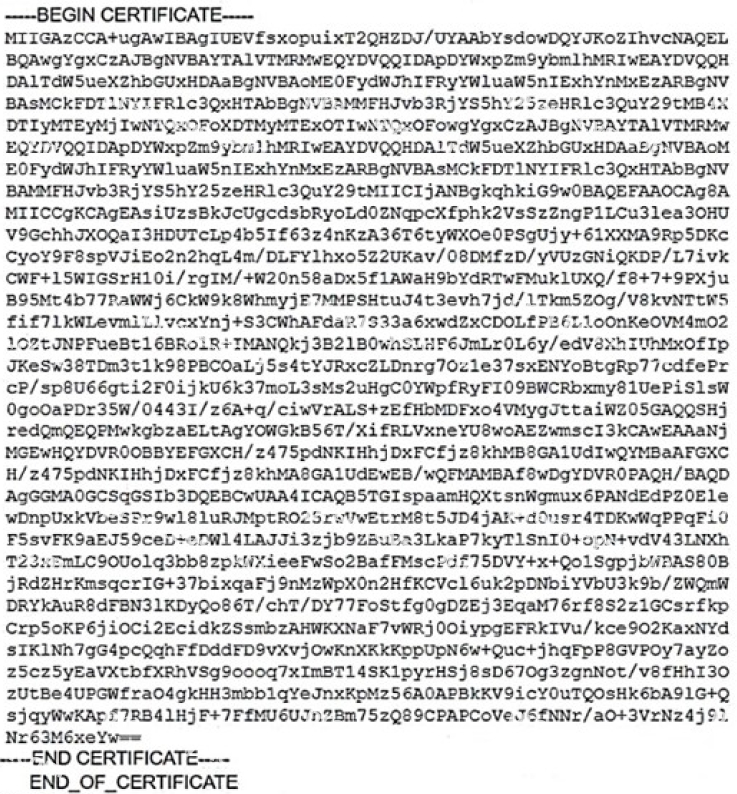

The Intune extension uses the device ID as the key to query Intune for device information. The device ID is a unique identifier that is assigned by Intune to each enrolled device. The device ID can be obtained from the client certificate that is used for EAP-TLS authentication. Therefore, the certificates issued to clients must include the Intune ID in the subject name, so that ClearPass can extract it and use it to query Intune2
The certificates issued to clients do not need to be issued by a well-known, trusted CA, as long as ClearPass trusts the CA that issued them. The certificates do not need to include the client MAC address in the subject name, as this is not relevant for querying Intune. The certificates do not need to be issued by a ClearPass Onboard CA, as this is not a requirement for using the Intune extension.
References:
1: ClearPass Extensions - Microsoft Intune Integration - Aruba, section "Configuring Microsoft Extension in ClearPass"
2: ClearPass Extensions - Microsoft Intune Integration - Aruba, section "Configuring EAP-TLS
Authentication"

This is because an Endpoint Context Server (ECS) is a feature that allows ClearPass to receive contextual information from external sources, such as Aruba Central, and use it for policy enforcement and reporting.
An ECS can be configured to point to the Aruba Central API and fetch data such as device type, category, OS, applications, traffic flows, etc.
An ECS can be used to communicate the information that an IoT client has used SSH to Aruba ClearPass Policy Manager (CPPM). The ECS can query the Aruba Central API and retrieve the network traffic flows of the wireless IoT devices that are categorized as "Raspberry Pi" clients. The ECS can then filter the traffic flows by the SSH protocol and send the relevant information to CPPM. CPPM can then use this information for policy decisions, such as allowing or denying SSH access, or triggering alerts or actions. B.
On CPPM enable Device Insight integration. This is not a valid step because Device Insight is a feature that allows ClearPass to discover, profile, and fingerprint devices on the network using deep packet inspection (DPI) and machine learning (ML). Device Insight does not communicate with Aruba Central or receive information from it. Moreover, Device Insight might not be able to detect SSH traffic on encrypted wireless IoT devices without decrypting it first.
C. On Central configure APs and gateways to use CPPM as the RADIUS accounting server. This is not a
valid step because RADIUS accounting is a feature that allows network devices to send periodic updates about the status and activity of authenticated users or devices to a RADIUS server, such as CPPM.
RADIUS accounting does not communicate with Aruba Central or receive information from it. Moreover, RADIUS accounting might not be able to capture SSH traffic on wireless IoT devices without inspecting it first.
D. On Central set up CPPM as a Webhook application. This is not a valid step because Webhook is a
feature that allows Aruba Central to send notifications or events to external applications or services using HTTP requests. Webhook does not communicate with CPPM or send information to it. Moreover, Webhook might not be able to send SSH traffic information on wireless IoT devices without filtering it first.

The subnet mask in rule 3 of the "medical-mobile" policy is currently 255.255.252.0, which means that the rule denies access to the 10.1.12.0/22 subnet as well as the adjacent 10.1.16.0/22 subnet 1. This is not consistent with the scenario requirements, which state that only the 10.1.12.0/22 subnet should be denied access, while the rest of the 10.1.0.0/16 range should be permitted access. To fix this issue, the subnet mask in rule 3 should be changed to 255.255.248.0, which means that the rule only denies access to the 10.1.8.0/21 subnet, which includes the 10.1.12.0/22 subnet 1. This way, the rule matches the scenario requirements more precisely.

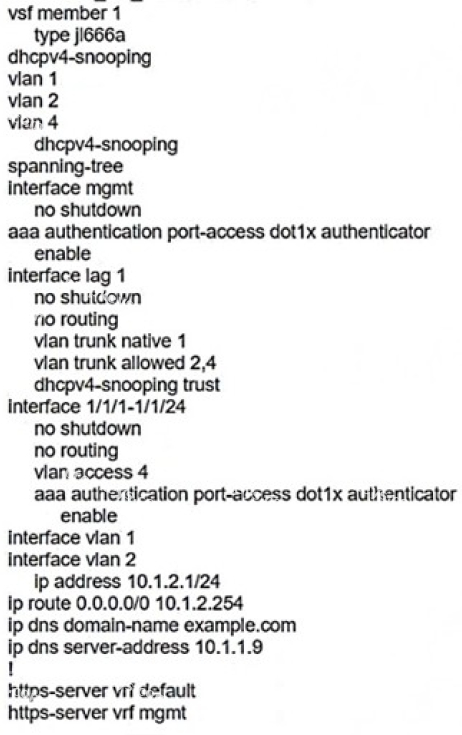

The UBT solution requires that the edge ports on the switches are configured in VLAN trunk mode, not access mode. This is because the UBT solution uses a special VLAN (VLAN 4095 by default) to encapsulate the user traffic and tunnel it to the gateway. The edge ports need to allow this VLAN as well as any other VLANs that are used for management or control traffic. Therefore, the edge ports should be configured as VLAN trunk ports and allow the necessary VLANs

A beacon is a type of network traffic that is sent from a compromised device to a command and control (C2) server, which is a remote system that controls the malicious activities of the device . A beacon is used to establish and maintain communication between the device and the C2 server, as well as to receive instructions or exfiltrate data .
A common characteristic of a beacon is that it is periodic, meaning that it is sent at regular intervals, such as every few minutes or hours . This helps the C2 server to monitor the status and availability of the device, as well as to avoid detection by network security tools . Another common characteristic of a beacon is that it is small and identically sized, meaning that it contains minimal or fixed amount of data, such as a simple acknowledgment or a random string . This helps the device to conserve bandwidth and resources, as well as to avoid detection by network security tools .

AppRF and WebCC are features that allow the MCs to classify and control application traffic and web content based on predefined or custom categories 12. These features are required to meet the scenario requirements of denying access to all high-risk websites and denying access to the WLAN for a period of time if they send any SSH or Telnet traffic.
To enable AppRF and WebCC, you need to check the following settings:
On the global level, you need to enable AppRF and WebCC under Configuration > Services > AppRF and Configuration > Services > WebCC, respectively 12. On the role level, you need to enable AppRF and
WebCC under Configuration > Security > Access Control > Roles > medical-mobile > AppRF and Configuration > Security > Access Control > Roles > medical-mobile > WebCC, respectively 12. You also
need to make sure that the MCs have valid licenses for AppRF and WebCC, which are included in the ArubaOS PEFNG license 3.
