HP HPE7-A01 - Questions & Answers

VSX clustering is a feature that allows two Aruba CX switches to operate as a single logical device, providing high availability, scalability, and simplified management. VSX clustering has several benefits over spanning tree configuration, such as: Dual control plane provides better resiliency. Unlike stacking, where switches share a single control plane, VSX switches have independent control planes that synchronize their states over an inter-switch link (ISL).
This means that if one switch fails or reboots, the other switch can continue to operate without affecting traffic flows or network services. Active-active forwarding provides better performance. Unlike spanning tree, where some links are blocked to prevent loops, VSX switches use all available links for forwarding traffic, providing load balancing and increased bandwidth utilization. Multichassis LAG provides better redundancy. Unlike single-chassis LAG, where all member ports belong to one switch, VSX switches can form multichassis LAGs with downstream or upstream devices, where member ports are distributed across both switches. This provides link redundancy and seamless failover in case of switch or port failure.
References:
https://www.arubanetworks.com/assets/tg/TG_VSX.pdf

multicast transmission optimization is a feature that allows the IAP to select the optimal rate for sending broadcast and multicast frames based on the lowest of unicast rates across all associated clients 1. When this option is enabled, multicast traffic can be sent at up to 24 Mbps. The default rate for sending frames for 2.4 GHz is 1 Mbps and 5.0 GHz is 6 Mbps. This option is disabled by default 1.

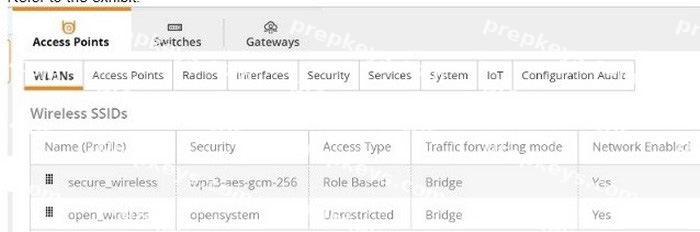

The correct action to fix the issue is C. Change the SSID to WPA3-Enhanced Open.
WPA3-OWE is not a valid SSID type in Central. OWE stands for Opportunistic Wireless Encryption, and it is a feature that provides encryption for open networks without requiring authentication. OWE is also known as Enhanced Open, and it is one of the options for WPA3 SSIDs in Central1.
According to the Aruba document Configuring WLAN Settings for an SSID Profile, one of the steps to configure a WPA3 SSID is:
Select the Security Level from the drop-down list. The following options are available: The other options are incorrect because:
A. WPA3-Enterprise (CNSA) is a valid SSID type, but it requires 802.1X authentication with a RADIUS
server, which may not be suitable for the company's use case.
B. WPA3-Personal is a valid SSID type, but it requires a passphrase to join the network, which may not be
suitable for the company's use case. D. WPA3-Enterprise (CCM) is a valid SSID type, but it requires 802.1X authentication with a RADIUS server, which may not be suitable for the company's use case.

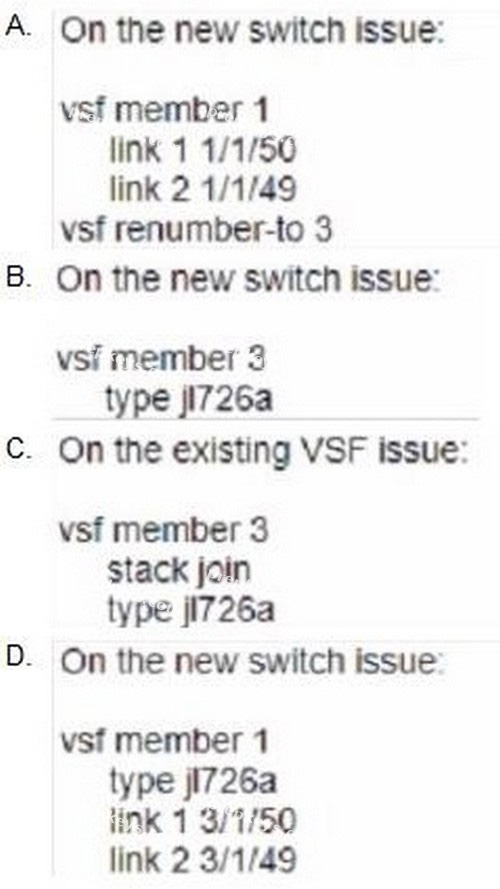

According to the Aruba Documentation Portal1, the Aruba CX 6200F VSF stack is a feature that allows you to create a virtual switching framework (VSF) with up to eight members that can be managed as a single logical device. The VSF stack provides benefits such as load balancing, failover, redundancy, and security.
To add a new device to the VSF stack, you need to configure the device with the VSF command vsf member and specify the type, link, and secondary-member information. The type of the new device can be one of the following: JL726A, JL726B, JL726C, or JL726D. The link is the interface that connects the new device to the existing VSF members. The secondary-member is an optional parameter that specifies which member will act as a backup in case of a failure.
1:
https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7726/index.html
2:
https://buy.hpe.com/us/en/networking/switches/fixed-port-l3-managed-ethernet-switches/6000-switch-products/aruba-6200f-48g-4sfp-switch/p/jl726a3:
https://addin.co.th/shop/switch/aruba-switch/6200f-series/jl726a/

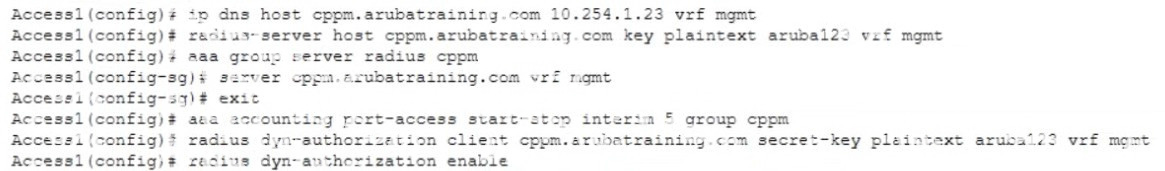

Change of Authorization (CoA) is a feature that allows ClearPass Policy Manager (CPPM) to send messages to network devices such as switches to change the authorization state of a user session. CoA requires that both CPPM and the network device support this feature and have it enabled. For AOS-CX switches, CoA must be globally enabled using the command radius-server coa enable. If CoA is not enabled on the switch, the disconnect CoA message from CPPM will be ignored and the user session will not be terminated.
References:
https://www.arubanetworks.com/techdocs/ClearPass/6.7/PolicyManager/index.htm#CPPM_UserGuide/Admin/ChangeOfAuthorization.htm
https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-9B8F6E8F-9C7A-
4F0D-AE7B-9D8E6C5B6A7F.html

According to the Aruba Documentation Portal1, the ArubaOS-CX switch supports various features to control the ingress traffic on specific ports, such as rate limiting, QoS shaping, and access control. These features can help reduce the impact of excessive broadcast traffic on the network performance and availability. This is because rate limiting is a feature that allows you to limit the inbound or outbound traffic on a port based on a percentage of the port capacity or a fixed amount of bytes per second. Rate limiting can help prevent broadcast storms by reducing the amount of broadcast packets that enter or leave a port https://www.arubanetworks.com/techdocs/central/latest/content/nms/aos-cx/cfg/conf-cx- access-
control.htm 2:
https://community.arubanetworks.com/blogs/esupport1/2021/02/08/broadcast-storm-
containment-in-
aruba-pvos-switches 3:
https://techhub.hpe.com/eginfolib/networking/docs/switches/K-KA-KB/15-18/5998-8160_ssw_mcg/content/ch05.html

To create a new OSPF configuration for a separate routing table, you need to create a new OSPF process ID with vrf name. This will create a new OSPF instance that is associated with the specified VRF and its routing table. The other options are incorrect because they either do not create a new OSPF instance or do not associate it with a VRF.
References:
https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html
https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html

The reason is that the Inter-Switch Link Protocol (ISLP) is a protocol that enables VSX stack join and synchronization between two VSX peer switches. ISLP uses a hello interval to exchange control messages between the switches. The hello interval is a parameter that specifies the time interval between sending hello messages. The default value of the hello interval is 1 second. The hello interval can be configured from 1 second to 10 seconds.
https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/index.html

EVPN-VXLAN is a technology that allows layer-2 communication across layer-3 networks by using Ethernet VPN (EVPN) as a control plane and Virtual Extensible LAN (VXLAN) as a data plane 3. EVPN-VXLAN can be used to support legacy applications that communicate at layer-2 across different campuses or data centers that are connected via layer-3. EVPN-VXLAN minimizes flooding by using BGP to distribute MAC addresses and IP addresses of hosts across different VXLAN segments 3. EVPN-VXLAN also provides benefits such as loop prevention, load balancing, mobility, and scalability 3.
References:
3 (https://www.arubanetworks.com/assets/tg/TG_EVPN_VXLAN.pdf)

This is the best practice for handling voice traffic with dynamic segmentation on AOS-CX switches.
Dynamic segmentation is a feature that allows AOS-CX switches to tunnel user traffic to a controller or another switch based on user roles and policies. For voice traffic, it is recommended to use switch authentication and local forwarding, which means the voice devices are authenticated by the switch and their traffic is forwarded locally without tunneling. This reduces latency and jitter for voice traffic and improves voice quality. The other options are incorrect because they either use central authentication or tunneling, which are not optimal for voice traffic.
References:
https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-
ch05.html (https://www.arubanetworks.com/assets/ds/DS_AOS-CX.pdf)
