Juniper JN0-683 - Questions & Answers

Understanding EVPN-VXLAN Architectures:
EVPN-VXLAN overlays allow for scalable Layer 2 and Layer 3 services in modern data centers.
CRB (Centralized Routing and Bridging):In this architecture, the Layer 3 routing is centralized on spine devices, while the leaf devices focus on Layer 2 switching and VXLAN tunneling. This setup is optimal when the goal is to centralize routing for ease of management and to avoid complex routing at the leaf level.
ERB (Edge Routing and Bridging):This architecture places routing functions on the leaf devices, making it a distributed model where each leaf handles routing for its connected hosts.
Architecture Choice for Spine Routing: Given the requirement to ensure Layer 3 routing happens on the spine devices, theCRB (Centralized Routing and Bridging) architecture is the correct choice. This configuration offloads routing tasks to the spine, centralizing control and potentially simplifying the overall design.

With CRB, the spine devices perform all routing between VXLAN segments. Leaf switches handle local switching and VXLAN encapsulation, but routing decisions are centralized at the spine level.
This model is particularly advantageous in scenarios where centralized management and routing control are desired, reducing the complexity and configuration burden on the leaf switches.
References:
The CRB architecture is commonly used in data centers where centralized control and simplified management are key design considerations. It allows the spines to act as the primary routing engines, ensuring that routing is handled in a consistent and scalable manner across the fabric.

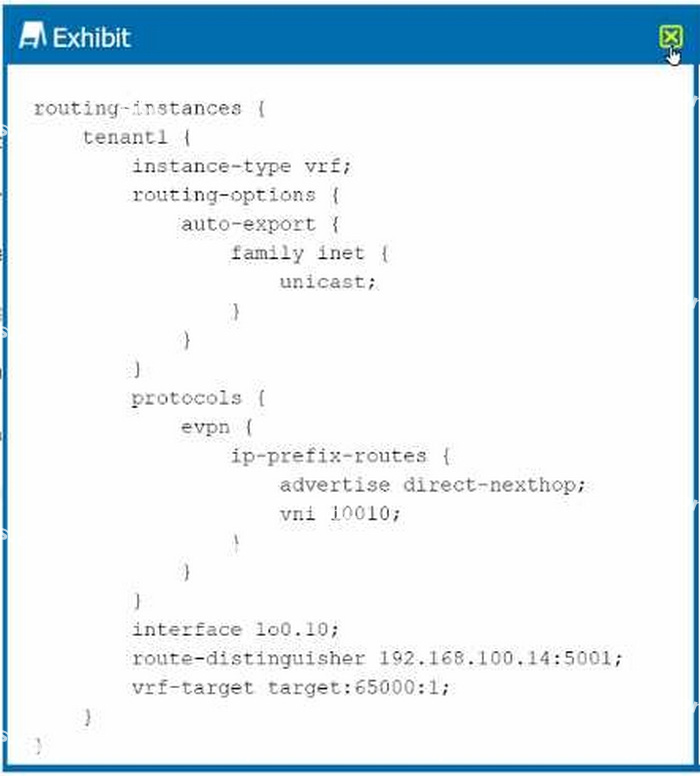

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis: Understanding EVPN Type 5 Routes: EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
VRF Target Setting:
The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this: move vrf-target target:65000:1 to evpn Other Options: Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

Understanding Lossless Ethernet and Congestion Management: Lossless Ethernet is crucial for AI and ML workloads, where packet loss can significantly degrade performance. To implement lossless Ethernet, congestion management protocols like ECN (Explicit Congestion Notification) are used.
Role of ECN in Congestion Management: Option A:In an IP fabric that supports lossless Ethernet, when a switch experiences congestion, it can mark packets using ECN. This marking notifies the source device of the congestion, allowing the source to reduce its transmission rate, thereby preventing packet loss.
Conclusion:
Option A:Correct--The switch experiencing congestion notifies the source device via ECN marking.

Understanding DCI (Data Center Interconnect) Schemes:
DCI schemes are used to connect multiple data centers, enabling seamless communication and resource sharing between them. The choice of DCI depends on the specific requirements, such as isolation, VNI translation, or routing domain separation.
VXLAN Stitching:
VXLAN stitching involves connecting multiple VXLAN segments, allowing VNIs (VXLAN Network Identifiers) from different segments to communicate with each other while maintaining separate routing domains.
This approach is particularly effective for keeping routing domains isolated while supporting VNI translation, making it ideal for scenarios where you need to connect different data centers or networks without merging their control planes.
Other Options:
A. MPLS DCI label exchange:This option typically focuses on MPLS-based interconnections and does not
inherently support VNI translation or isolation in the context of VXLAN.
B. Over the top (OTT) with VNI translation enabled:This could support VNI translation but does not
inherently ensure routing domain isolation.
D. Over the top (OTT) with proxy gateways:This typically involves using external gateways for traffic
routing and may not directly support VNI translation or isolation in the same way as VXLAN stitching.
References:
VXLAN stitching is a powerful method in multi-data center environments, allowing for flexibility in connecting various VXLAN segments while preserving network isolation and supporting complex interconnect requirements.

Understanding the Configuration:

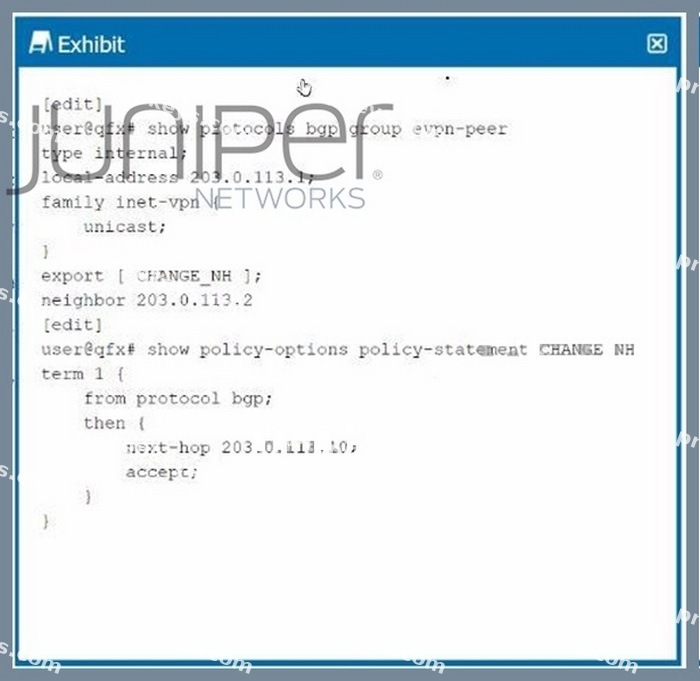

The configuration shown in the exhibit involves an EVPN (Ethernet VPN) setup using BGP as the routing protocol. The export policy named CHANGE_NH is applied to the BGP group evpn-peer, which includes a rule to change the next hop for routes that match the policy.

Issue with Next Hop Not Changing: The policy CHANGE_NH is correctly configured to change the next hop to 203.0.113.10 for the matching routes. However, the next hop remains unchanged when advertising EVPN routes to the peer 203.0.113.2.
Reason for the Issue: In Junos OS, when exporting routes for VPNs (including EVPN), the next-hop change defined in a policy will not take effect unless the vpn-apply-export parameter is used inthe BGP configuration. This parameter ensures that the export policy is applied specifically to VPN routes.
The vpn-apply-export parameter must be included to apply the next-hop change to EVPN routes.
Correct Answer Explanation:
D. The vpn-apply-export parameter must be applied to this peer:This is the correct solution because the
next hop in EVPN routes won't be altered without this parameter in the BGP configuration. It instructs the BGP process to apply the export policy to the EVPN routes.
References:
This behavior is standard in EVPN deployments with Juniper Networks devices, where the export policies applied to VPN routes require explicit invocation using vpn-apply-export to take effect.

Issue Analysis:

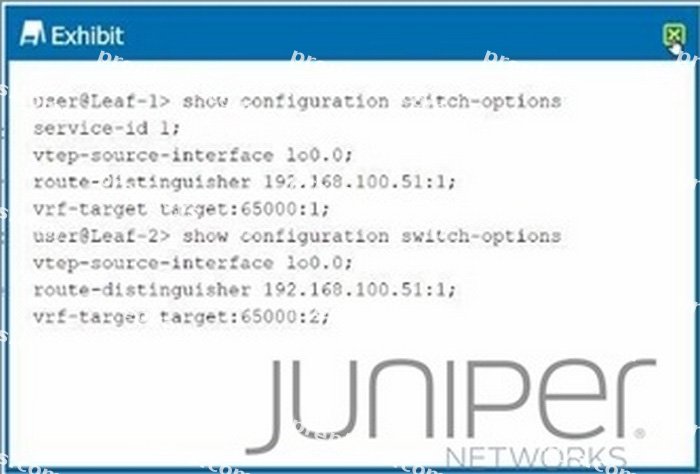

The problem in the exhibit suggests a mismatch in configuration parameters between Leaf-1 and Leaf-2, leading to communication issues between hosts connected to these leaf devices.
Configuration Mismatches:
Service-ID:Leaf-1 has service-id 1 configured, while Leaf-2 does not have this parameter. For consistency and proper operation, the service-id should be the same across both leaf devices.
VRF Target:Leaf-1 is configured with vrf-target target:65000:1, while Leaf-2 is configured with vrf-target target:65000:2. To allow proper VRF import/export between the two leafs, these should match.
Corrective Actions:
C. Configure the set switch-options vrf-target target:65000:1 parameter on Leaf-2:This aligns the VRF
targets between the two leaf devices, ensuring they can correctly import and export routes.
E. Configure the set switch-options service-id 1 parameter on Leaf-2:This ensures that both Leaf-1 and
Leaf-2 use the same service ID, which is necessary for consistency in the EVPN-VXLAN setup.
References:
Correct configuration of VRF targets and service IDs is critical in EVPN-VXLAN setups to ensure that routes and services are correctly shared and recognized between different devices in the network fabric.

Telemetry Methods in Junos: Telemetry is used to collect and report data from network devices. For high-frequency statistics reporting, such as every five seconds, you need a telemetry method that supports this level of granularity and real-time monitoring.
Junos Native Sensors:
Option C:Native Sensors in Junos provide detailed, high-frequency telemetry data, including TX and RX traffic statistics for interfaces. They are designed to offer real-time monitoring with customizable sampling intervals, making them ideal for the five-second reporting requirement.
Conclusion:
Option C:Correct--Native Sensors in Junos are capable of providing the required high-frequency telemetry
data every five seconds.
