Question 1
Single choice

Choose the correct answer

A has three inputs I 1. I 2 and 13 and one output O, I1, I2. I3 and O are all of the same type A requires I1 or I2 to execute but I1 and I2 are mutually exclusive. I3 must be present tor A to begin.

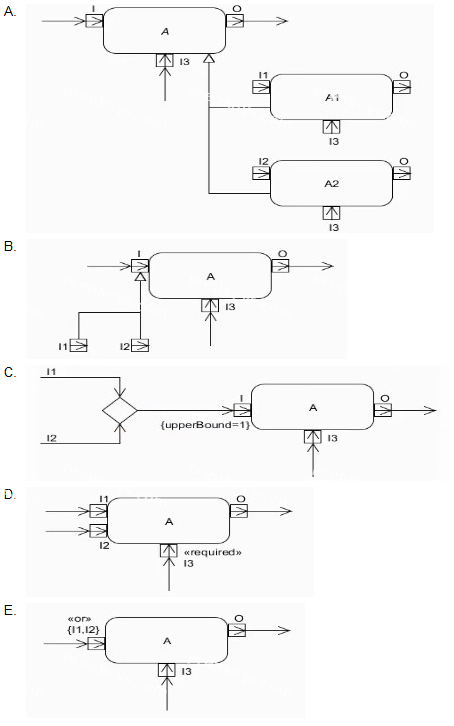

Which activity diagram fragment correctly shows A with its three inputs and one output?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

Question 2
Single choice

The final version of the diagram must depict that a SoftwareSession is created by some activity of a:User.

Which change must be made to the Initial draft diagram to meet this requirement'

A.

The arrow '"Start Software" has to be solid and with a closed head.

B.

The first activation on the lifeline SoftwareSession has to be removed

C.

The arrow "Start Software" has to cud at the tail and not at the head of the lifeline SoftwareSession.

D.

No change is required.

Question 3
Single choice

Choose the correct answer

What is the statement An activity specifies the behavior of a use case?

A.

a constraint defined in SysML

B.

a guideline from a methodology

C.

a constraint of the activity element

D.

a constraint of the use case element

Question 4
Single choice

Choose the correct answer.

What are the possible values of the enumeration ControlValue?

A.

suspend and resume

B.

enable and disable

C.

suspend, resume, enable and disable

D.

It has no values, but is intended for a modeler to extend with their own control values.

Question 5
Single choice

Choose the correct answer.

Which diagram type is commonly used to create a bill of materials?

A.

Package diagram

B.

Activity diagram

C.

Parametric diagram

D.

Requirements diagram

E.

internal block diagram

F.

Block definition diagram

Question 6
Single choice

Choose the correct answer.

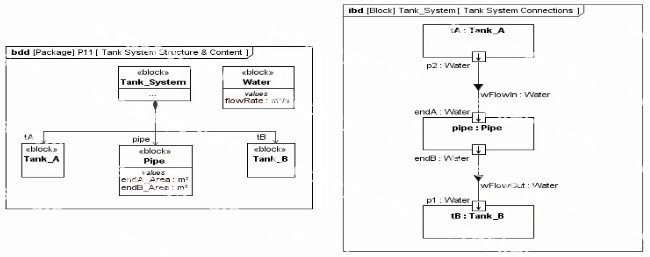

A system engineer has created the following model of a tank system composed of two tanks and a pipe connecting them:

The system engineer wants to mathematically relate the flow of water through the pipe using the following
mass conservation equation: Tank_System wFlowin flowRate * Tank_System pipe endA_Area = Tank_System wFlowOut flowRate * Tank_System pipe endB_Area

How would the system engineer model this in SysML?

A.

Create a block to represent the mass conservation equation, use it in Tank_System. and relate its properties to the properties of wFlowin. wFlowOut. and pipe

B.

Create a constraint block to represent the mass conservation equation, use it in Tank_System. and relate its parameters to the properties of wFiowin. wFlowOut. and pipe

C.

Create a constraint block to represent each of wFlowin wFlowOut and the mass conservation equation;
use these constraint blocks In Tank_System. and relate their parameters to the properties of pipe.

D.

Create two flow properties for Tank_System (equivalent to wFlowin and wFlowOut); create a constraint
block for the mass conservation equation and use it in Tank_System.and then relate the flow properties to the new constraint property.

E.

It is not possible to model this because wFlowin and wFlowOut are item properties and not flow properties

Question 7
Single choice

Choose the correct answer

What is a 'control operator'?

A.

it is an activity that can output control tokens via a parameter node.

B.

It Is the general term for any element of an activity that can handle control tokens.

C.

It Is a special kind of activity node that can be used to control the flow of tokens into an activity.

D.

It Is an activity node that allows a modeler to specify the use of mathematical operators such as plus minus, multiply, or divide.

Question 8
Single choice

Choose the correct answer.

Assume the following state machine fragment Is In the A-State when the event evC arrives.

What is the order of behaviors that are executed after evj arrives?

A.

action 9, action 1

B.

action 2, action 9, action 1

C.

action 2, action 9, action 1, start activity X, evC

D.

stop activity X (if needed), action 2, action 9, action 1, start activity X

E.

stop activity X (If needed), action 2, action 9, action 1, action 4 start activity X

Question 9
Single choice

Choose the correct answer.

Given the following diagram:

Where should b4 appear In the model hierarchy?

A.

as a part contained by the block B1

B.

as a part contained by the block B3

C.

as a part contained by the block B4

D.

as a part contained by the diagram Nested Parts

Question 10
Single choice

Choose the correct answer.

What is the relationship between objective functions and measures of effectiveness (MOEs)?

A.

An objective function is usually a function of only one MOE.

B.

An objective function is usually a function of several different MOEs

C.

An MOE is usually composed of only one objective function.

D.

An MOF is usually composed of several different objective functions
