Exit OMG-OCUP-200 OMG-Certified UML Professional Intermediate
Question 1 of 5
0% complete
Q1 Single choice

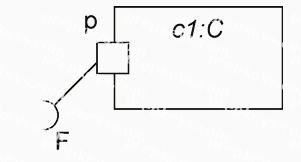

What does the composite structure notation in the exhibit mean?

  • A

    Class C has internal structure.

  • B

    Object c1 is a kind of component.

  • C

    Port p is connected to an object called F

  • D

    Port p realizes the features defined by interface F

  • E

    Port p requires the features defined by interface F

Previous Next
