Question 1
Single choice

In the exhibit, if the incoming arrows provide three control values, how many control values are provided to the outgoing arrow?

A.

none

B.

one

C.

two

D.

three

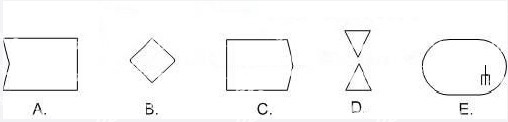

Question 2
Single choice

What symbol depicts a Call Behavior Action?

A.

A

B.

B

C.

C

D.

D

E.

E

Question 3
Single choice

Which list contains only connectable elements?

A.

behavior, connector end, and port

B.

behavior, port and property

C.

port and connector end

D.

connector end, port and part

E.

property, port, and parameter

Question 4
Single choice

What is true about guards on interaction operands?

A.

should not refer to any dynamic variables, i.e., to attributes of the lifelines

B.

must only cover one lifeline, namely the one lifeline having the first event occurrence of the interaction operand

C.

must always cover all lifelines covered by the operand

D.

must cover the same lifelines on all interaction operands within one combined fragment

Question 5
Multiple choice

What indicates an artifact instance in UML notation? (Choose two.)

A.

single sheet icon with a folder-over corner

B.

syntactically well-formed file name

C.

class box with two smaller rectangles on its left side

D.

memo box

E.

<<artifact>> keyword

Question 6
Multiple choice

What statements are true about a composite structure? (Choose two.)

A.

Destroying an instance of a structured classifier normally destroys instances of its parts.

B.

Structured classifiers cannot contain instances of structured classifiers.

C.

The behavior of a structured classifier must be completely defined through the collaboration of owned or referenced instances.

D.

Collaborations are structured classifier.

E.

A structured classifier is also an encapsulated classifier.

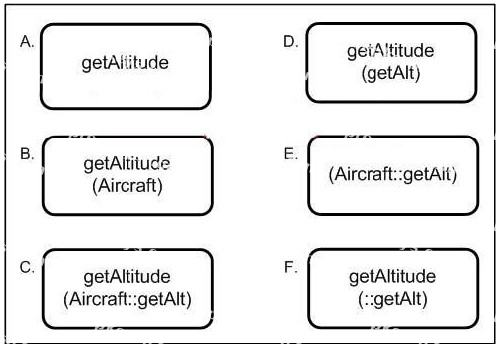

Question 7
Single choice

What are valid representations of a Call Operation Action? (Choose two.)

A.

A

B.

B

C.

C

D.

D

E.

E

F.

F

Question 8
Single choice

If the node in the exhibit receives a value, what happens to other values flowing in the diagram containing the node?

A.

nothing

B.

They stop for a time specified by the small circle.

C.

They are aborted.

D.

They stop until the small circle emits a value.

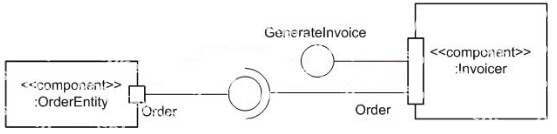

Question 9
Single choice

What best describes the semantics modeled by the exhibit?

A.

The Order Entity component is part of the internals of the Invoicer component.

B.

The Invoicer has a complex connector that connects the Generate Invoice interface with the Order interface.

C.

This is an illegal diagram.

D.

The Invoicer has a complex port that provides the interface Generate Invoice and requires the interface Order.

Question 10
Single choice

What types of features may a component possess?

A.

attributes and operations

B.

operations, but not attributes

C.

neither attributes nor operations

D.

attributes, but not operations
