Exit 100-105 Interconnecting Cisco Networking Devices Part 1 (ICND1)
Question 4 of 5
0% complete
Q4 Single choice

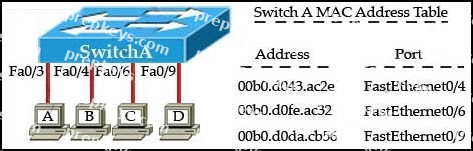

Refer to the exhibit.

The exhibit is showing the topology and the MAC address table. Host A sends a data frame to host D.

Which option describes what the switch will do when it receives the frame from host A?

  • A

    The switch will flood the frame out of all ports except for port Fa0/3.

  • B

    The switch will add the destination address of the frame to the MAC address table and forward the frame to host D.

  • C

    The switch will add the source address and port to the MAC address table and forward the frame to host D.

  • D

    The switch will discard the frame and send an error message back to host A.
