Exit 300-410 Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)
Question 3 of 5
0% complete
Q3 Single choice

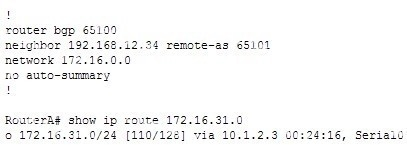

Examine the following output.

You are investigating why router RouterA does not include the 172.16.0.0 network in its BGP advertisements. The output contains portions of RouterA's configuration and IP routing table.

Which statement correctly identifies the reason why this subnet does not appear in the BGP advertisements?

  • A

    BGP synchronization is enabled by default.

  • B

    The no auto-summary command was used.

  • C

    The 172.16.31.0/24 network was learned through BGP.

  • D

    The 10.1.2.3 IP address was not defined as a BGP neighbor.

Previous Next
