Q2 Single choice

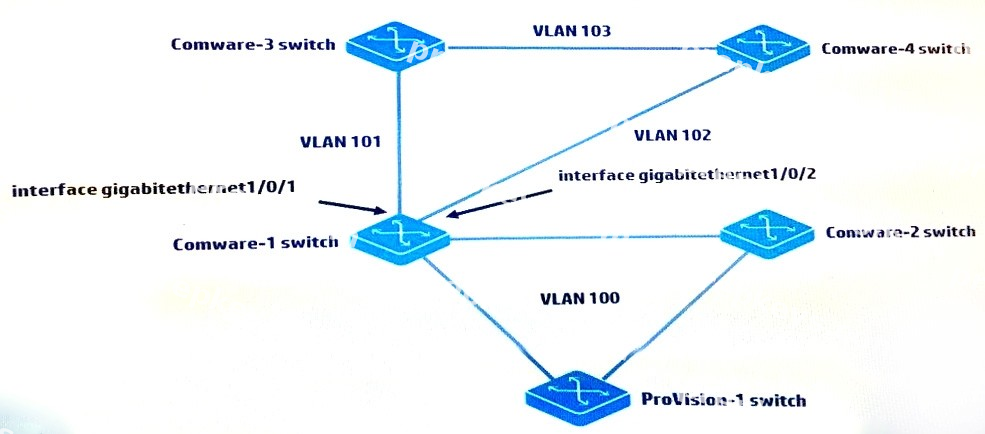

Refer to the exhibit.

MSTP is configured on all switches shown in the exhibit. The Comware-1, Comware-3, and Comware-4 switches are set up for OSPF. Comware-1 and Comware-4 switches fail to achieve neighbor adjacency.
The network administrator analyzes the issue and determines that MSTP is blocking on port gigabitethernet1/0/2 on Comware-1.

Which configuration should the administrator configure on ports g1/0/1 and g1/0/2 to allow Comware-1 to form the correct OSPF adjacencies with Comware-3 and Comware-4?

  • A

    interface g1/0/1spanning-tree bpdu-filterquitinterface g1/0/2spanning-tree bpdu-filterquit

  • B

    interface g1/0/1undo stp enablequitinterface g1/0/2undo stp enablequit

  • C

    interface g1/0/1stp link-mode routequitinterface g1/0/2stp link-mode routequit

  • D

    interface g1/0/1stp bpdu-filterquitinterface g1/0/2stp bpdu-filterquit
