Q2 Single choice

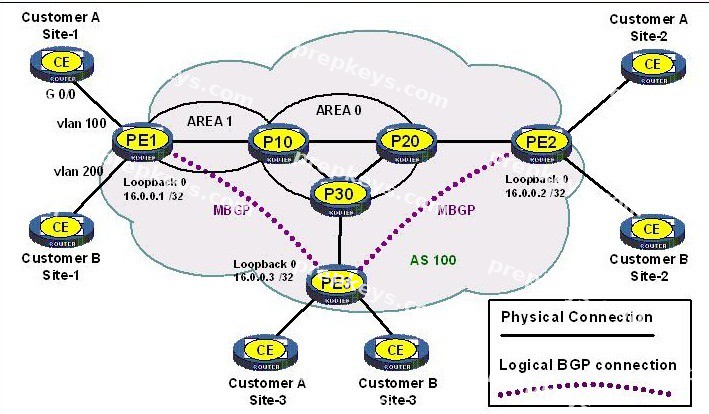

Click the Exhibit button.

A provider of MPLS services configures MPLS Layer-3 VPN services for two customers. Each customer has three branch offices that will be interconnected by MPLS Layer-3 VPNs. The following are address blocks chosen by the customers for each site as shown in the chart:

100% Real Q&As | 100% Real Pass The provider uses OSPF as its IGP with the Loopback 0 addresses shown as the OSPF router-id and the MPLS LSR-ID. Customer A uses a default route on each site. Customer B uses eBGP to exchange routes with the provider. All MPLS layer-3 VPNs are functioning properly.

Which configuration change will cause Customer-A Site 1 to lose access to Customer-A Site 2?

  • A

    [PE-1]
    bgp 1
    undo import-route static

  • B

    [P-10]
    ospf 1
    area 0
    abr-summary 16.0.0.2 30 cost 1000

  • C

    [PE-1]
    int vlan 100
    undo mpls ldp

  • D

    [PE-3]
    bgp 1
    undo peer 16.0.0.1 reflect-client

  • E

    [P-10]
    ip route static 10.1.0.0 16 null 0 preference 9
