Q3 Single choice

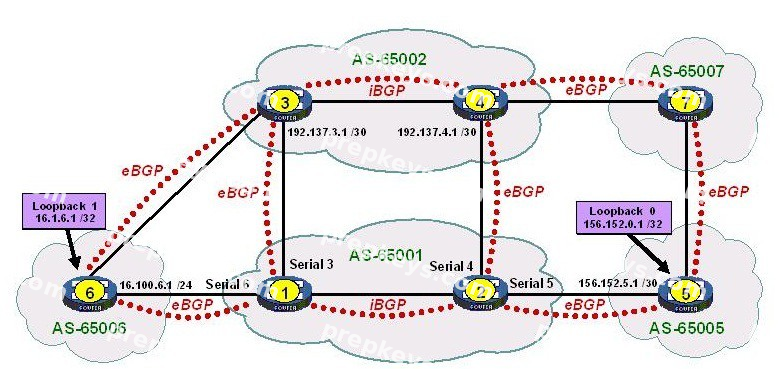

Click the Exhibit button and view a network diagram and two switch configurations.

100% Real Q&As | 100% Real Pass

Traffic from AS 65006 destined for network 16.1.0.0 /16 enters AS 65001 via the Serial 3 interface of
1. The administrator prefers that this traffic enter AS 65001 via interface Serial 6 of Router
1.

Which configuration changes on Router 1 are required to achieve the desired result?

  • A

    bgp 65001 peer 16.1.6.1 ebgp-max-hop 2

  • B

    bgp 65001 peer 16.1.6.1 next-hop-local

  • C

    route-policy PolicyB permit node 10 if-match ip-prefix Prefix1 apply as-path 100 100

  • D

    route-policy PolicyD permit node 10 if-match ip-prefix Prefix1 apply as-path 100 100

  • E

    route-policy PolicyB permit node 10 if-match ip-prefix Prefix1 apply cost 200route-policy PolicyD permit node 10 if-match ip-prefix Prefix1 apply cost 100

  • F

    route-policy PolicyB permit node 10 if-match ip-prefix Prefix1 apply cost 100route-policy PolicyD permit node 10 if-match ip-prefix Prefix1 apply cost 200
