Q1 Single choice

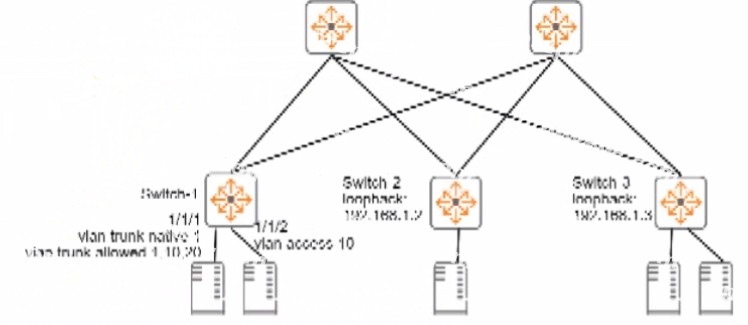

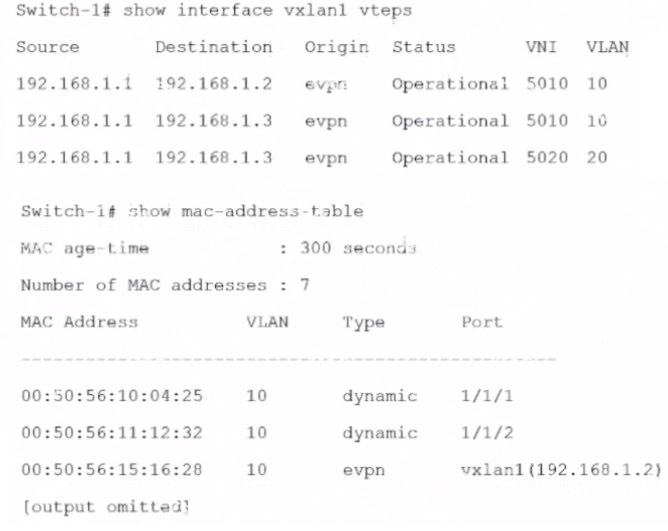

Refer to the exhibits.

Is this how the switch handles the traffic?

Solution: A broadcast arrives in VLAN 10 on Switch-1. Switch 1 forwards the frame on all interfaces assigned to VLAN10, except the incoming interface. It encapsulates the broadcast with VXIAN and sends it to 192.168.1.2. but not 192.168.1.3.

  • A

    Yes

  • B

    No
